Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, Yes
DTS Neo:X, DTS Neural:X: No, Yes (15ch)
DTS Virtual:X: Yes
IMAX Enhanced: Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround: No, Yes
Auro 3D: Yes
360 Reality Audio / MPEG H: Yes, Yes
Multichannel Stereo: Yes
Max. Number of Processing (Pre-Amp) Channels: 15.4
Sound Enhancements
Mono Block Power Amp Construction: Yes (L/R separated)
Discrete Power Amplifier: Yes
D.D.S.C. HD Digital: Yes (32 bit)
Pure Direct: Yes
Gold-Plated RCA Terminals: Yes
Clock Jitter Reducer: Yes
Alpha Processing: AL32 Processing Multichannel
Audyssey: MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume: Yes, Yes
Audyssey LFC: Yes
Dirac Live Upgradability: Yes
Compressed Audio Restorer: Yes
Network
Media Server: Yes
HEOS Wireless Multi-Room Technology: Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes
Alexa / Google Voice Assistant / Apple HomePod: Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC: Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV: Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): Yes, Yes, Yes
DSD Audio Streaming: Yes (2.8/5.6MHz)
AirPlay 2: Yes
TuneIn: Yes
Spotify Connect: Yes
Pandora: Yes
SiriusXM: Yes
Roon Tested: Yes
HEOS App Control: Yes
Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote
Ethernet Ports: Yes
Wi-Fi: Yes
Bluetooth: Yes
HDMI
HDMI Inputs: Back, Front: 7, No
HDCP2.3 support: Yes
HDMI Outputs: Main, Zone: 2, 1
HDMI In, Out: 7, 3
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate, Quick Frame Transport, Quick Media Switching: Yes, Yes, No
3D Signal Pass-through: Yes
8K Signal Pass-Through, Scaling, GUI Overlay: Yes, Yes, Yes
DSD Audio Capability: Yes
Audio Return Channel (ARC), Enhanced ARC: Yes, Yes
Auto LipSync: Yes
Multi-room / CI
Multi-Room Zones: 3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analogue: Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out: Yes, Yes
Zone HDMI Output from HDMI Source: Yes
IP Control, RS232 Control, Web Control, App Control: Yes, Yes /Yes, Yes
Remote In / Out: Yes, Yes
DC Trigger Output: 2
HDMI Diagnostics: Yes
Others
Auto Speaker Setup by Microphone:
Audyssey MultEQ XT32
Dirac Live (upgrade)

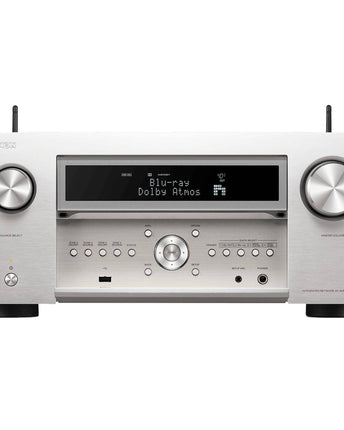

Front Display: 2-Line FLD
GUI Languages: 3
Setup Assistent: Yes
Quick Select Plus, Quick Select: Yes, No
Variable Crossover: Yes
Optimized Bass Redirection: Yes
Bass Sync: Yes
ECO Mode: Yes
Auto Power Off: Yes
Sleep Timer: Yes

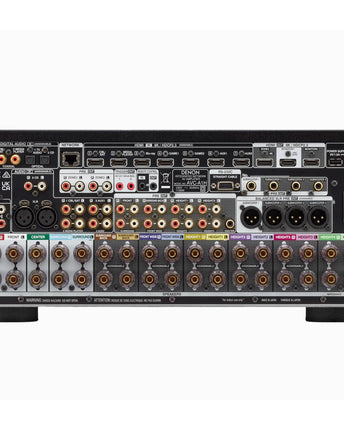

Inputs Outputs
VIDEO
Multi-Room Video Out: Video, HDMI: No, Yes
AUDIO
Analogue In, Out: 5 (1x XLR), No
Phono (MM) In: Yes
Digital In: Optical, Coaxial: 2, 2
Multi-Room Out: Analogue, Digital: 2, No
Multichannel Pre-Out: Yes (17.4)
Subwoofer Out: 4 (independent)
OTHER
Speaker Terminal: Gold-Plated Screw, Regular Screw: Yes, No
Number of Speaker Terminals: 17
Speaker A / B: Assignable
Bi-amp Drive: Assignable
Multi-Room Speaker Terminal: Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone: Yes, No, No
AM/FM Tuner: Yes
Specifications
Number of Power Amps: 15
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): No
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 150W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 190W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 210W
General
Metal Front Panel: Yes
System Remote Control: RC-1250
Pre-Programmed, Learnable, LCD Display: No, No, No
Power Consumption in W: 1100
Power Consumption No-Sound (ECO On / Off) in W: 80 W / 160 W
Standby Consumption in W: 0.1
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in mm: 434 x 498 X 195
Antenna: Vertical: (W x D x H) in mm: 434 x 498 X 259
w/o Antenna: (W x D x H) in mm: 434 x 493 x 195
Weight in kg: 32.0
Carton Weight (inc. product) in kg: 38.0
