Technical Information
Number of Power Amps: 13
Power Output:
150 watts per channel (8 ohm, 20Hz - 20kHz,0.05% 2ch Drive)
190 watts per channel (6 ohm, 1kHz, 0.7% 2ch Drive)
190 watts per channel (6 ohm, 1kHz, 1% 1ch Drive)
210 watts per channel (6 ohm, 1kHz,10% 1ch Drive)
Auto Speaker Setup by Microphone: Audyssey MultEQ XT32

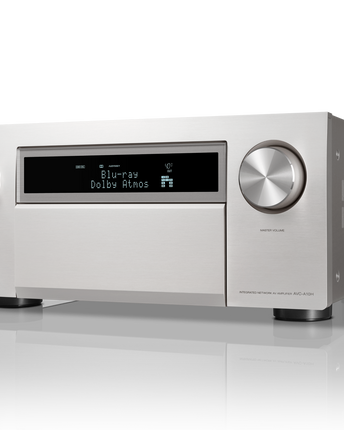

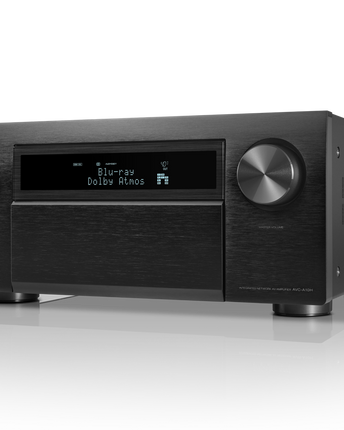

Front Display: 2 Lines FLD
GUI Languages: 9
General
System Remote Control: RC-1261
Power Consumption in W: 900W
Power Consumption No-Sound (ECO on/off) in W: 70W/125W
Standby Consumption in W: 0.1W
CEC Standby Consumption in W: 0.5W
Network Standby Consumption in W: Less than 2.0W
Maximum Dimensions:
Antenna, Horizontal: (W × D × H) in mm 434 × 482 × 195
Antenna, Vertical: (W × D × H) in mm 434 × 482 × 259
Antenna, w/o Antenna: (W × D × H) in mm 434 × 472 × 195
Weight in kg: 23.6 kg

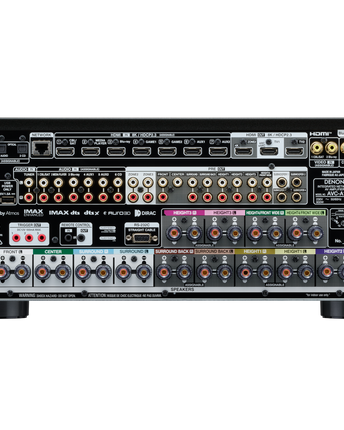

Inputs/Outputs
HDMI In/Out: 7/3
Analog In/Out: 7+1 / 0
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: Analog / Digital: 2 / 0
Multichannel Pre-Out: Yes (15.4)
Subwoofer Out: 4 (independent)
Other
Number of Speaker Terminals: 15
Speaker A/B: Assignable
Bi-Amp Drive: Assignable
Multi-Room Speaker Terminal: Assignable
