General Features
Screen Size: 98"
Brightness (cd/m²): 780
Contrast Ratio: 5000:1
Dynamic Contrast Ratio: 700,000:1
Response Time (ms): 6.5
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG,Dolby Vision)
Aspect Ratio: 16:9
Portrait/Tilt Compatibility: Yes
Display Features
Dimming Type: Local Dimming
Display Device: LCD
Panel Type: VA
Backlight Type: Direct (Full Array LED)
TRILUMINOS Display: XR Triluminos Pro
Colour Gamut (DCI-P3): 95%
Picture Processor: Cognitive Processor XR
Operation Time: 24 / 7
Deep Black Non-Glare Coating: Yes
Haze (%): 47%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)
Video Specification
Wide Mode: Wide Zoom / Normal / Full / Zoom
4:3 Default: Yes
Video Processing: XR 4K Upscaling
Motion Enhancer: XR Motion Clarity
HDMI Signal:
4096 x 2160p (24,60Hz),
3840 x 2160p (24,30,60,120Hz),
1080p (24,30,60,120Hz),
1080i (60Hz),
720p (24,30,60Hz),
480p
Audio Specification
Speaker Position: Down Firing + Side Back
Audio Power Output: 10W + 10W + 10W + 10W
Professional Features
Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: Yes
Operating System: Android TV
On-board Storage (GB): 32GB
Network Specification
Wi-Fi Direct: Yes
Wi-Fi Certified: Yes
Wireless LAN: Integrated
Convenience Features
USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS (HDV,AVCHD):MPEG2,AVC / MP4 (XAVCS):AVC,MPEG4,HEVC / AVI:Xvid,MotionJpeg / ASF (WMV):VC1 / MOV:AVC,MPEG4,MotionJpeg / MKV:Xvid,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes
Control Specifications
IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

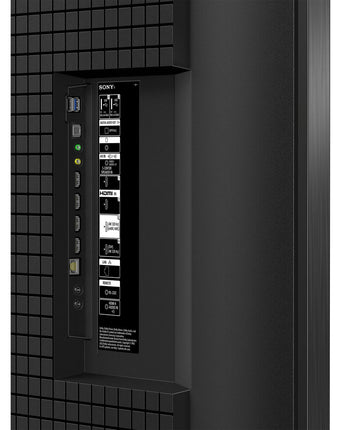

Inputs and Outputs
HDCP: HDCP2.3 (for HDMI1 / 2 / 3 / 4)
Composite Video Input (s): Hybrid w/S-Center Speaker Input x1 (Side, Mini jack)
HDMI Inputs Total: 4 (4Side)
Analog Audio Input (s) (Total): 1 (Side Analog Conversion)
Digital Audio Output (s): 1 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)
Design Features
Frame Colour: Black
Stand Design: No stand
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 600 x 400 mm / 23 5/8 x 15 3/4 inch
Environment Specifications
Screen Size for WEB (diagonal, cm, integer or 1st decimal): 248 cm
Rated Power Consumption: 505 W
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Measurements
Dimension of TV without Stand (W x H x D): 2199 x 1255 x 85 mm / 86 5/8 x 49 1/2 x 3 3/8 inch
Dimension of Package Carton (W x H x D): 2330 x 1394 x 283 mm / 91 3/4 x 55 x 11 1/4 inch
Weight
Weight of TV without Stand: 67.2 kg / 148.1 lb
Weight of Package Carton (Gross): 91 kg / 200.5lb.
