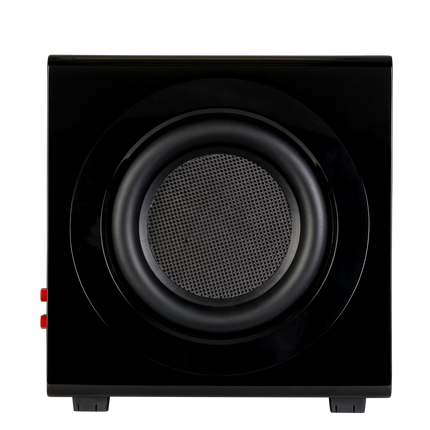

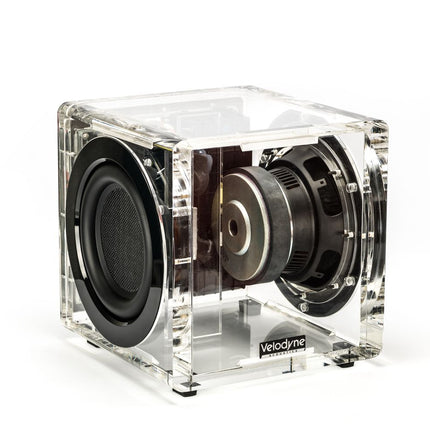

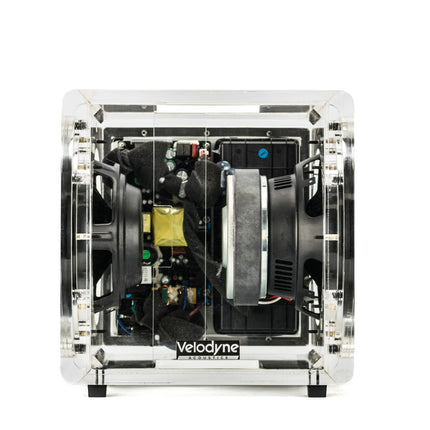

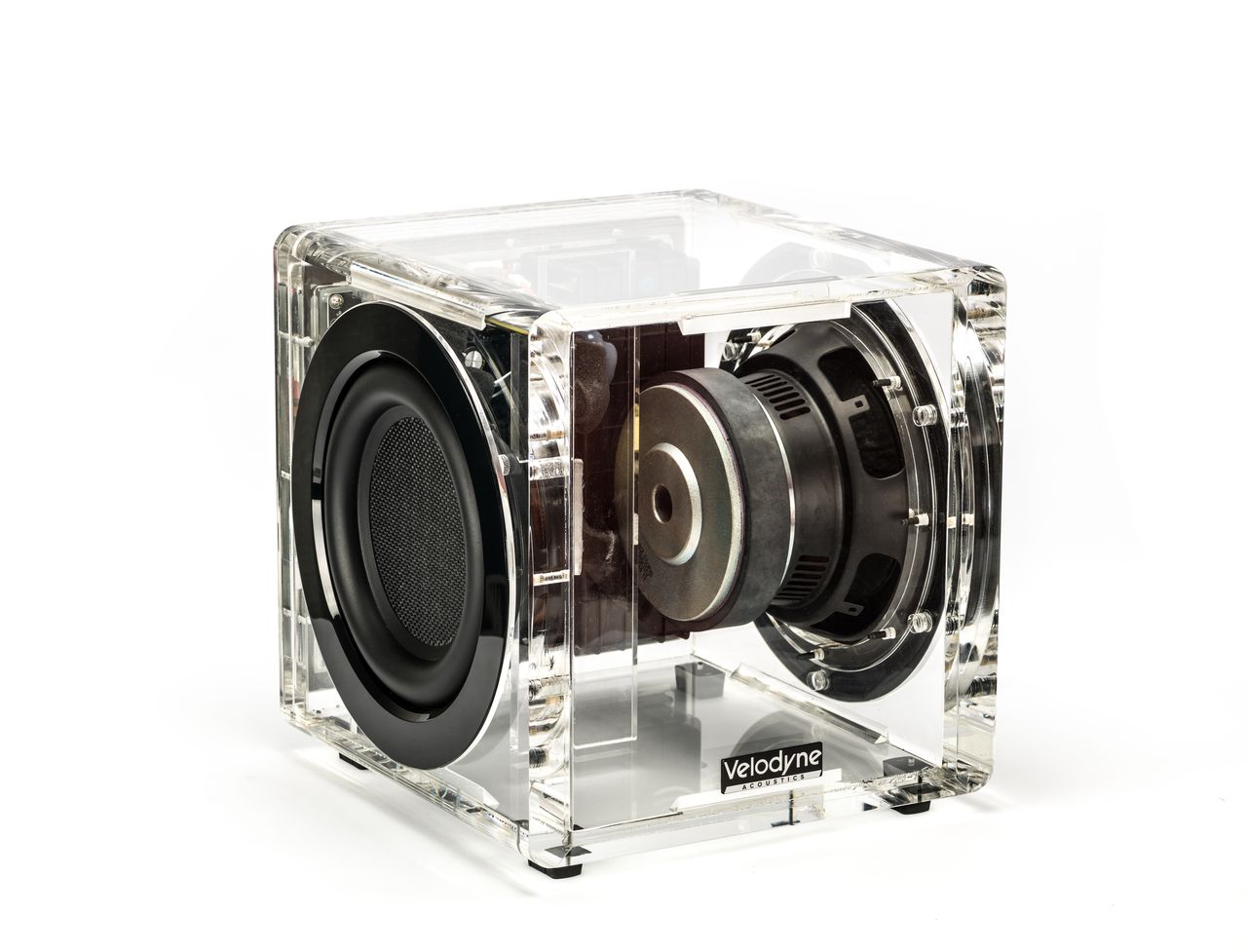

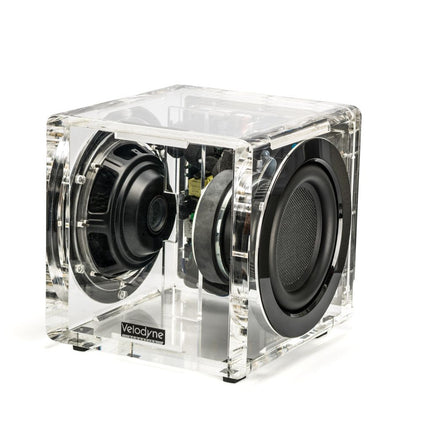

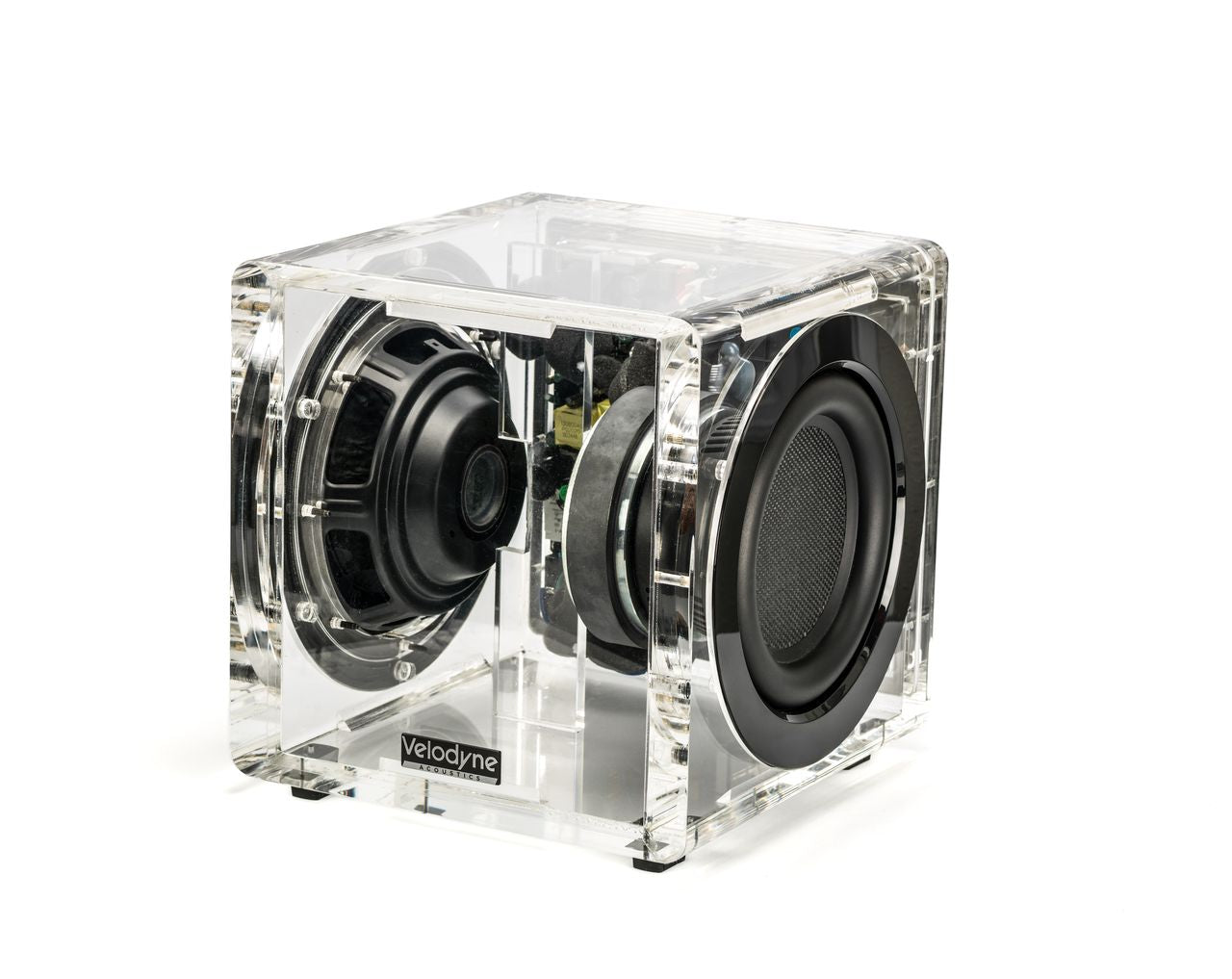

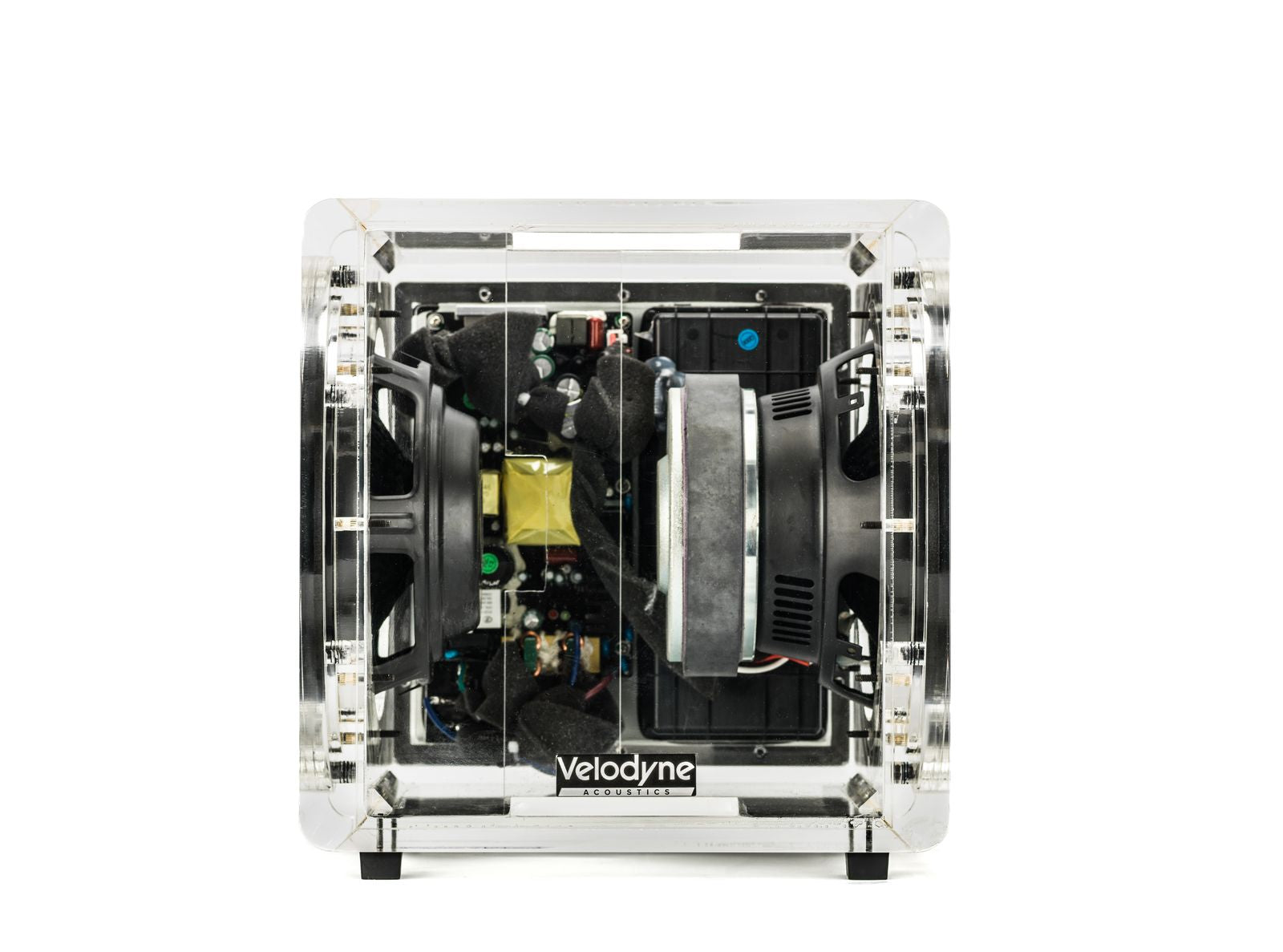

All-new proprietary 8” long-throw driver with high-precision tuned overhung motor and 8” passive radiator
Class D amplifier:
350 W RMS @ 0.5% THD
600 W @ 2% THD
800 W maximum output
Frequency response:
Overall: 18 – 300 Hz
±3 dB: 32 – 180 Hz
30 to 200 Hz low-pass crossover with 12 dB/octave slope
Phase adjustment: 0° to 180°

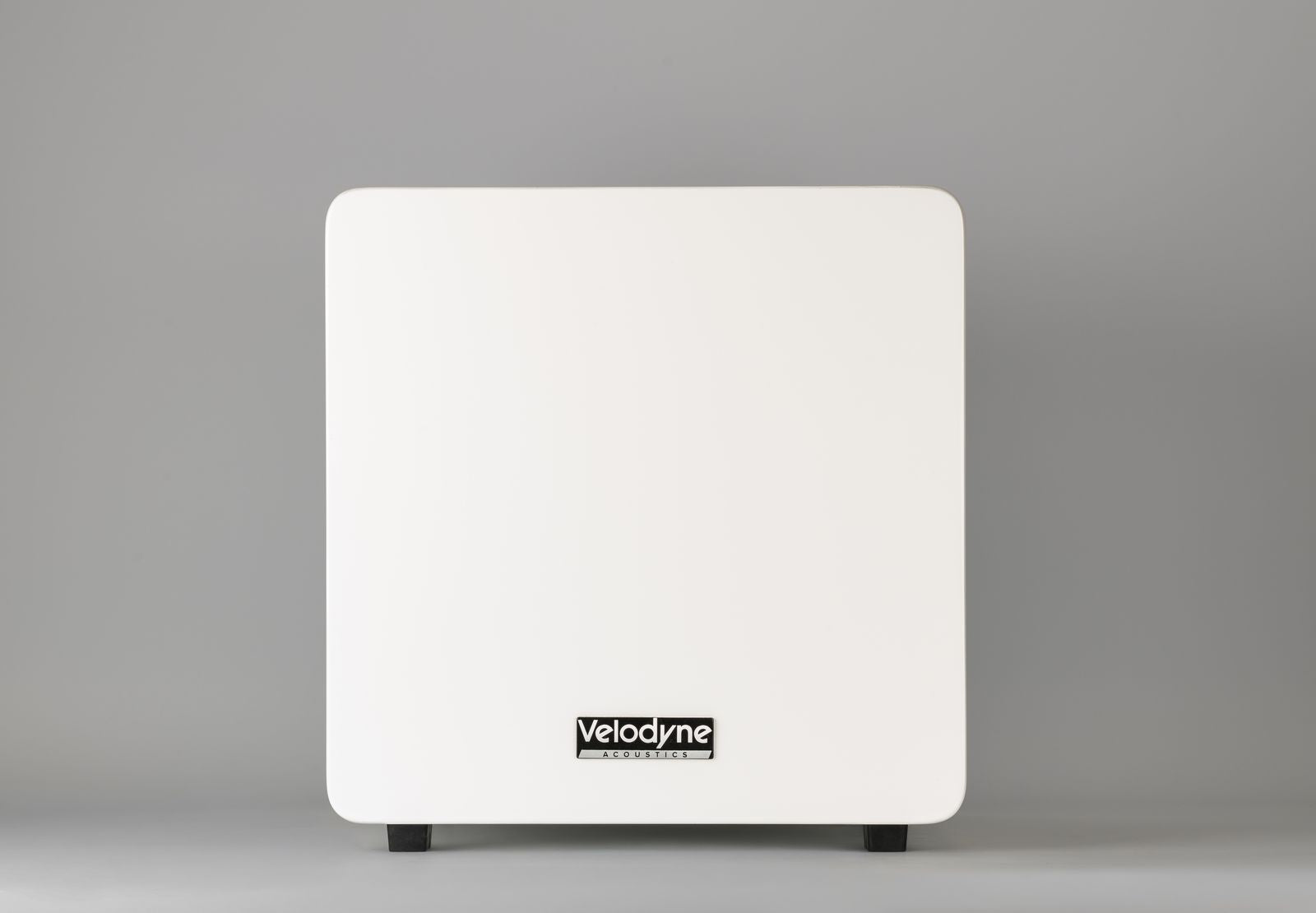

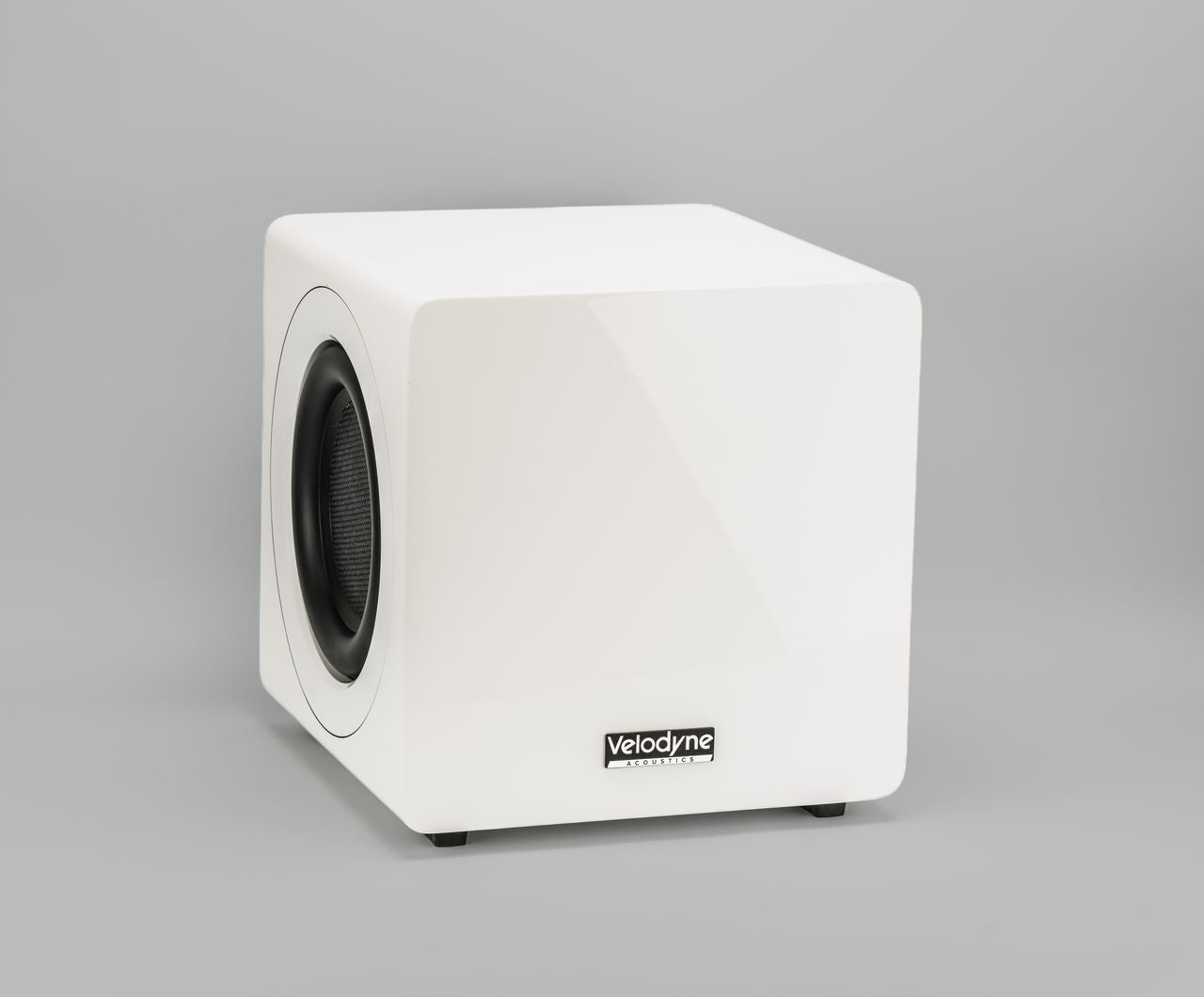

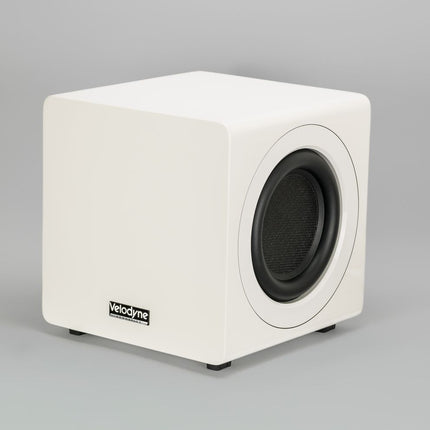

High-gloss MDF cabinet design
Dual ferrite magnet motor structure
2” diameter voice coil with high-current 4-layer high-purity copper windings

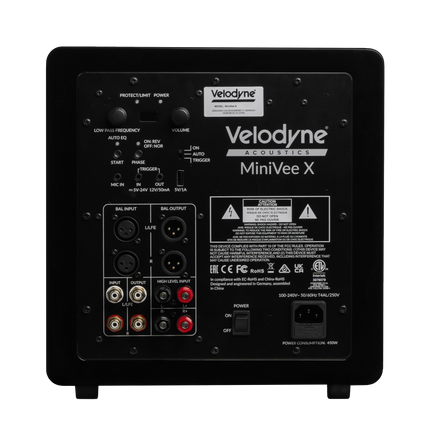

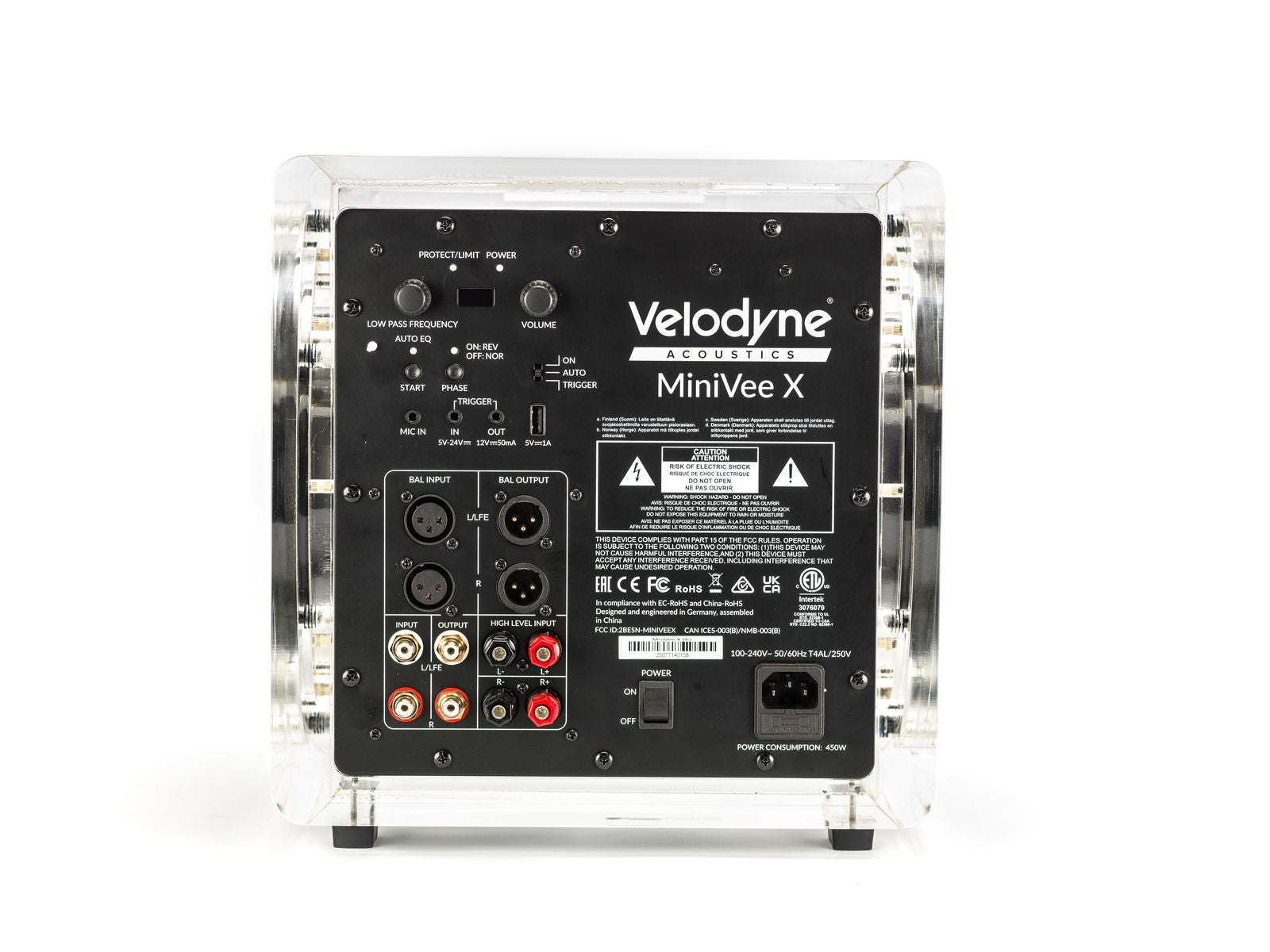

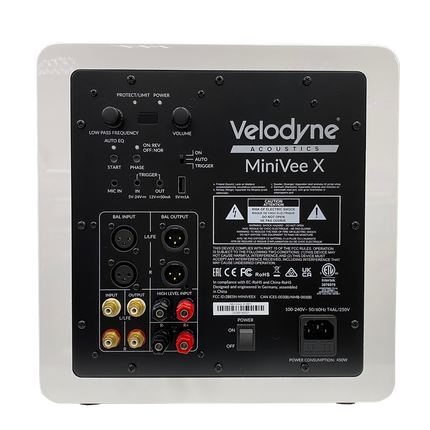

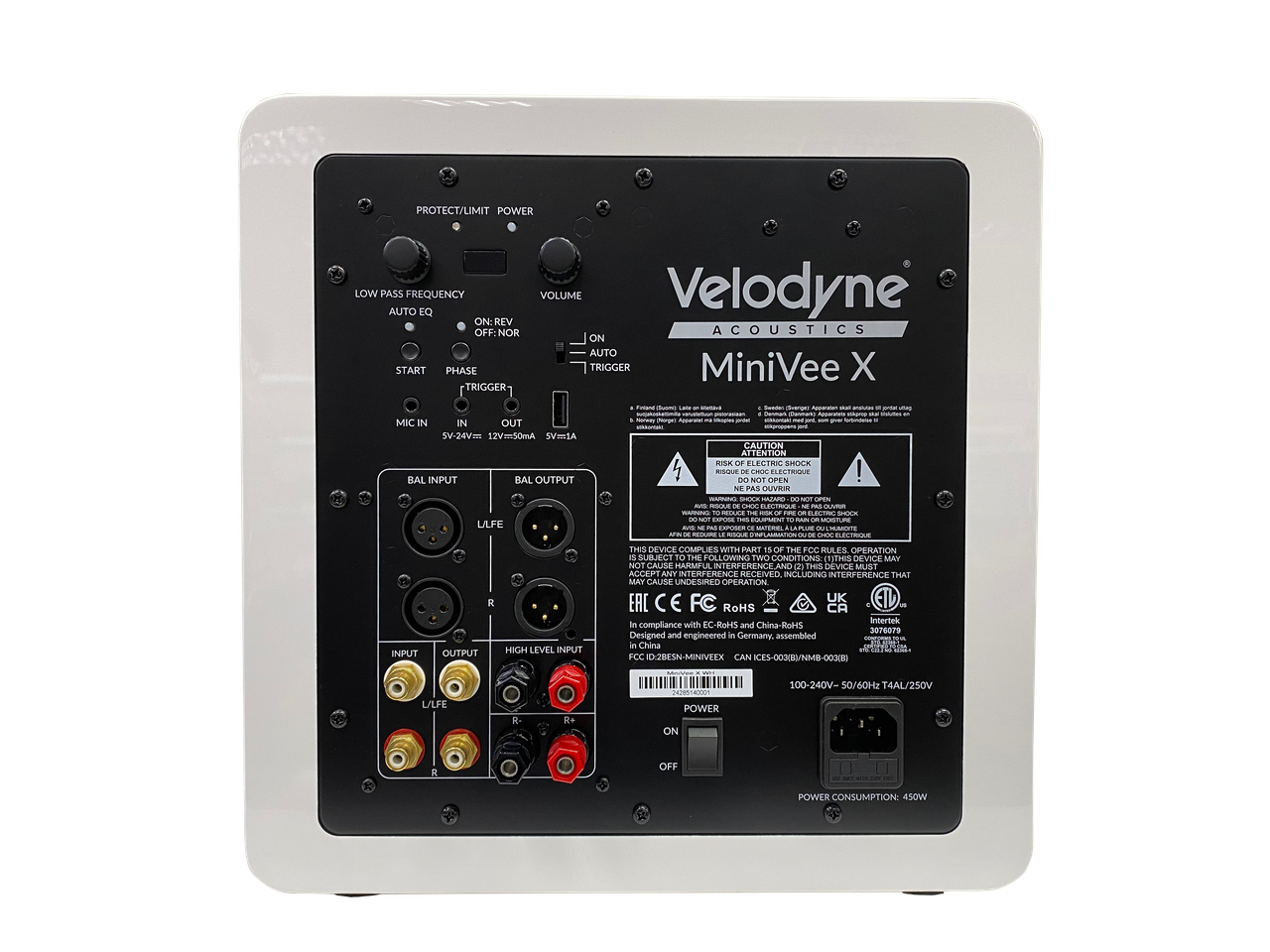

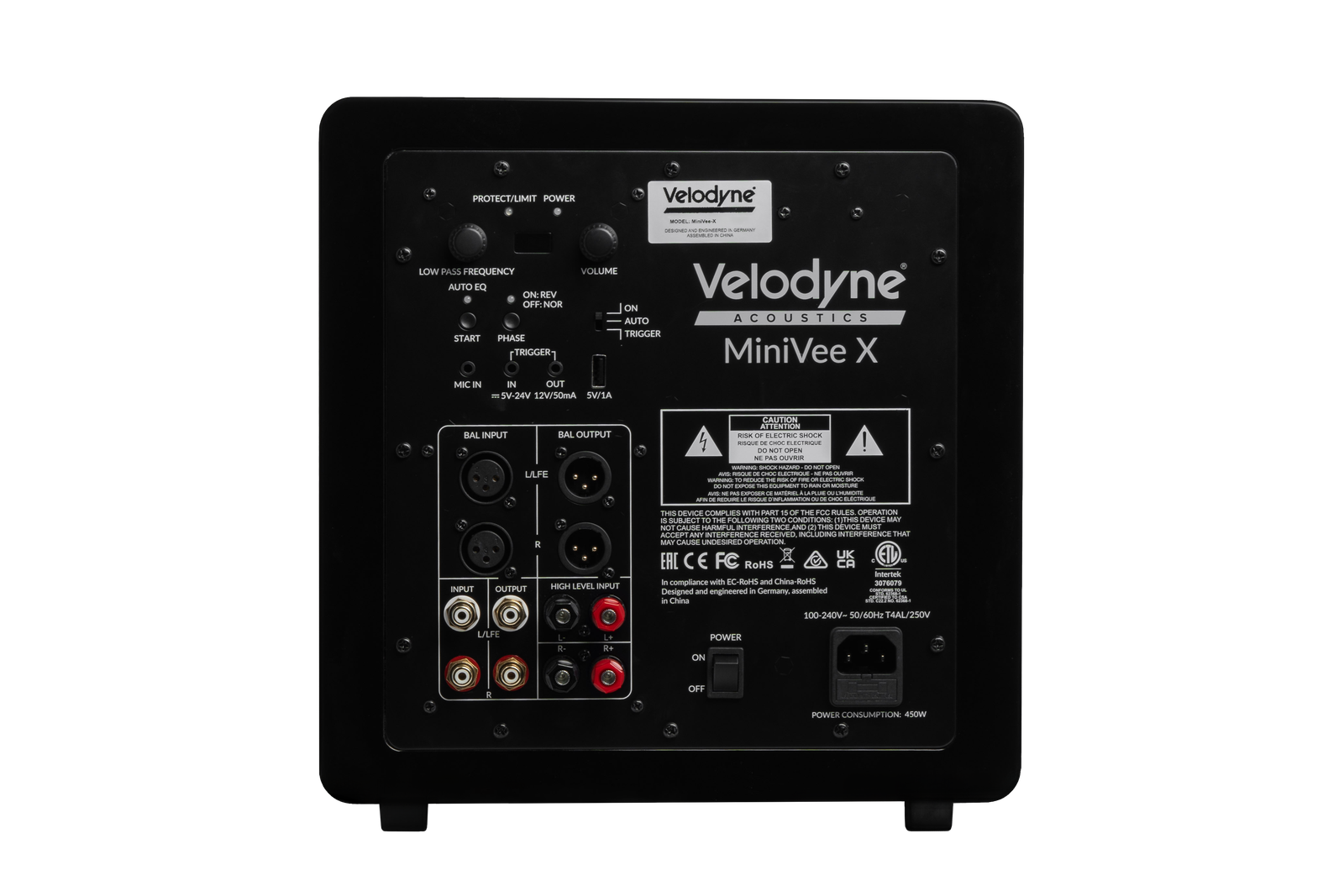

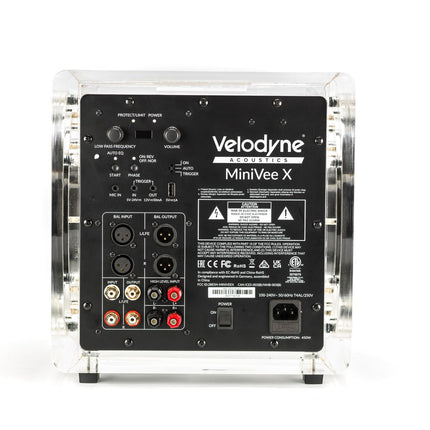

Inputs:
Unbalanced Stereo/LFE RCA
Balanced Stereo/LFE XLR
3.5 mm mini jack 12 V trigger input
5 V / 1 A USB power output for external wireless system (Wi-Connect II)
Outputs:
Unbalanced Stereo/LFE RCA (daisy chain)
Balanced Stereo/LFE XLR (daisy chain)
3.5 mm mini jack trigger output with 5-second delay
Power indicator LED: Blue (on) / Red (standby)

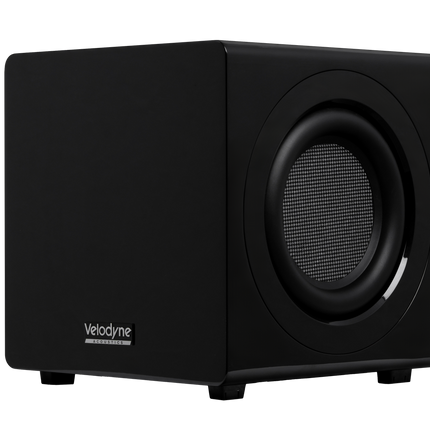

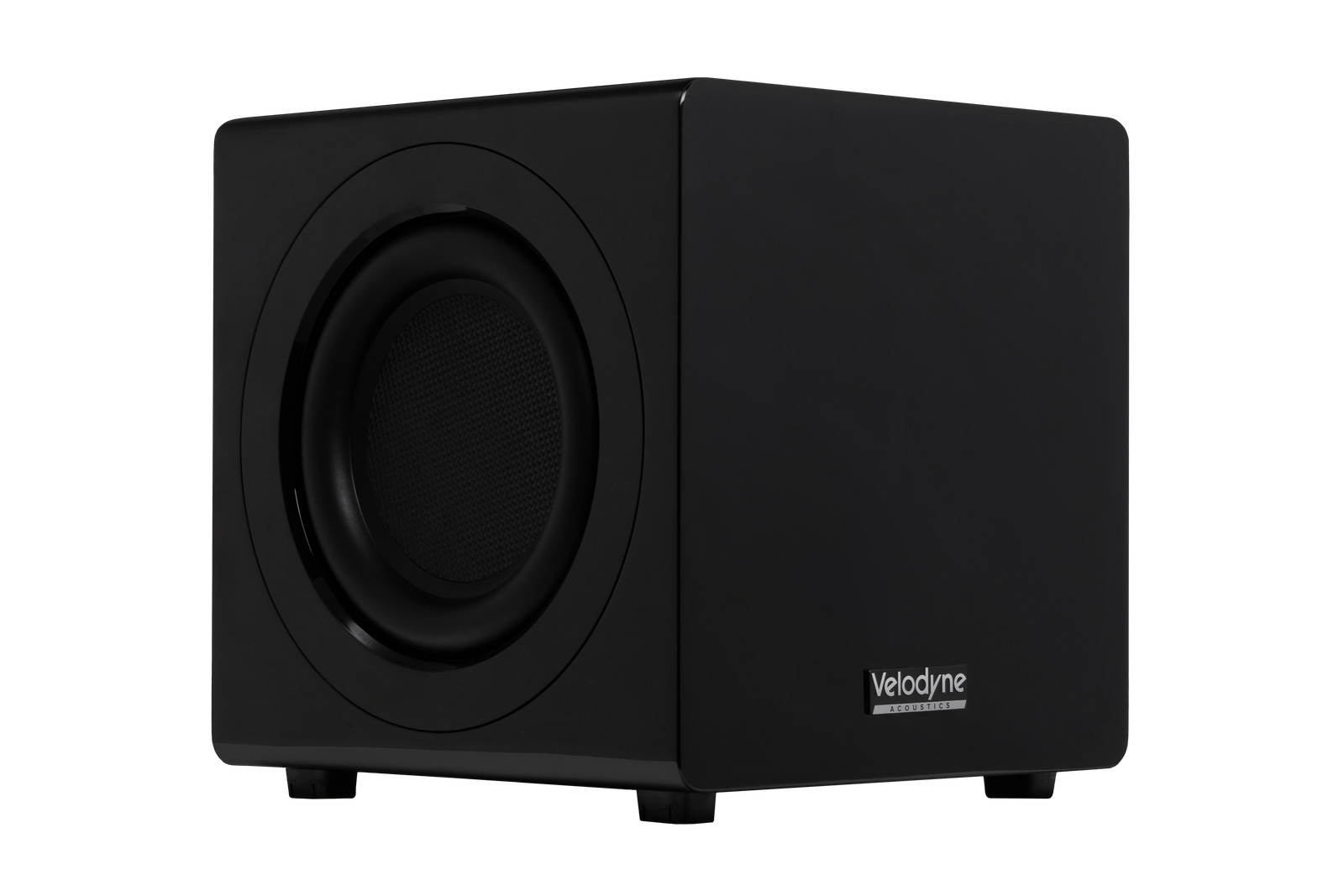

Finish: Black
Dimensions (H x W x D, including feet and connectors): 30 cm x 29 cm x 29 cm
Weight: approx. 15 kg
Shipping weight: approx. 20 kg
