Frequency response 25Hz – 200Hz
Cabinet Tuned passive radiator enclosure
Drivers 170mm treated fibre long-throw active driver and 170mm passive radiator
Amplifier 100W RMS Class D with soft clipping filter

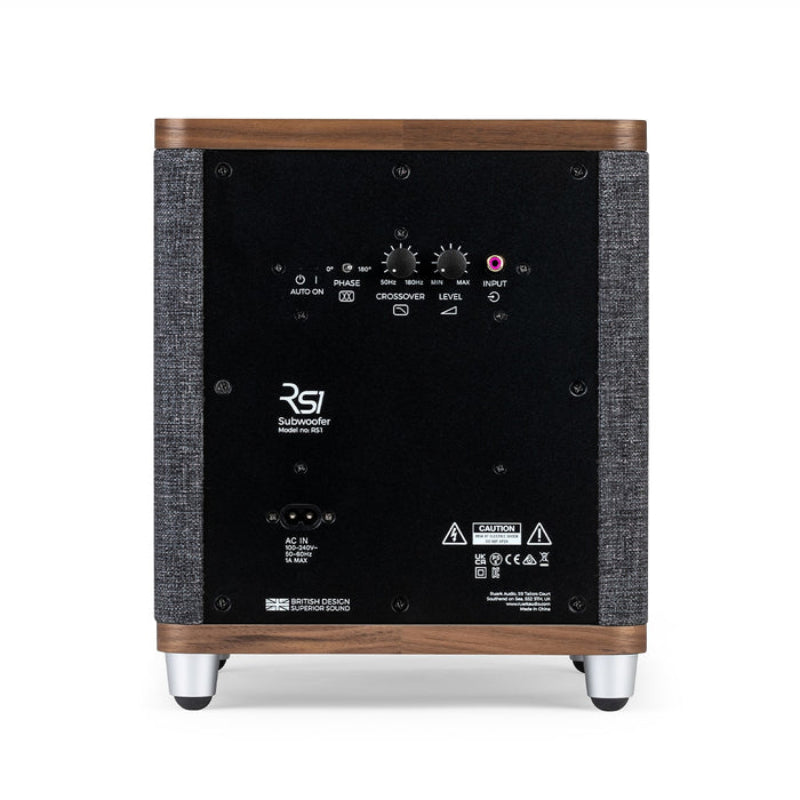

Controls Adjustable crossover 50–180Hz, input/volume level control and 180 degree phase switch
Auto on Automatically turns on and sleeps after 15 minutes when no signal is detected
Input Sub-input via Mono RCA input (up to 2.3Vrms)
Finishes Slate Grey cabinet cloth with Rich Walnut or Satin Charcoal lacquer top and bottom panels
Product compatibility RS1 is compatible with our MR1, R3S and R410 models or any other active speaker or amplifier with subwoofer or pre-out phono connectors
Power consumption 0.5W standby, 2.0W idle
AC power input 100-240V, 50-60Hz
Product dimensions H300 × W250 × D265mm (inc. feet and controls)
Product weight 6.7kg
