Audio

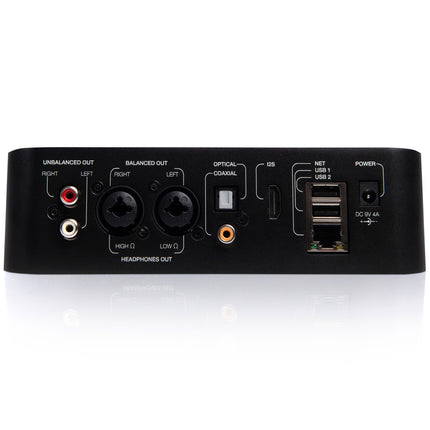

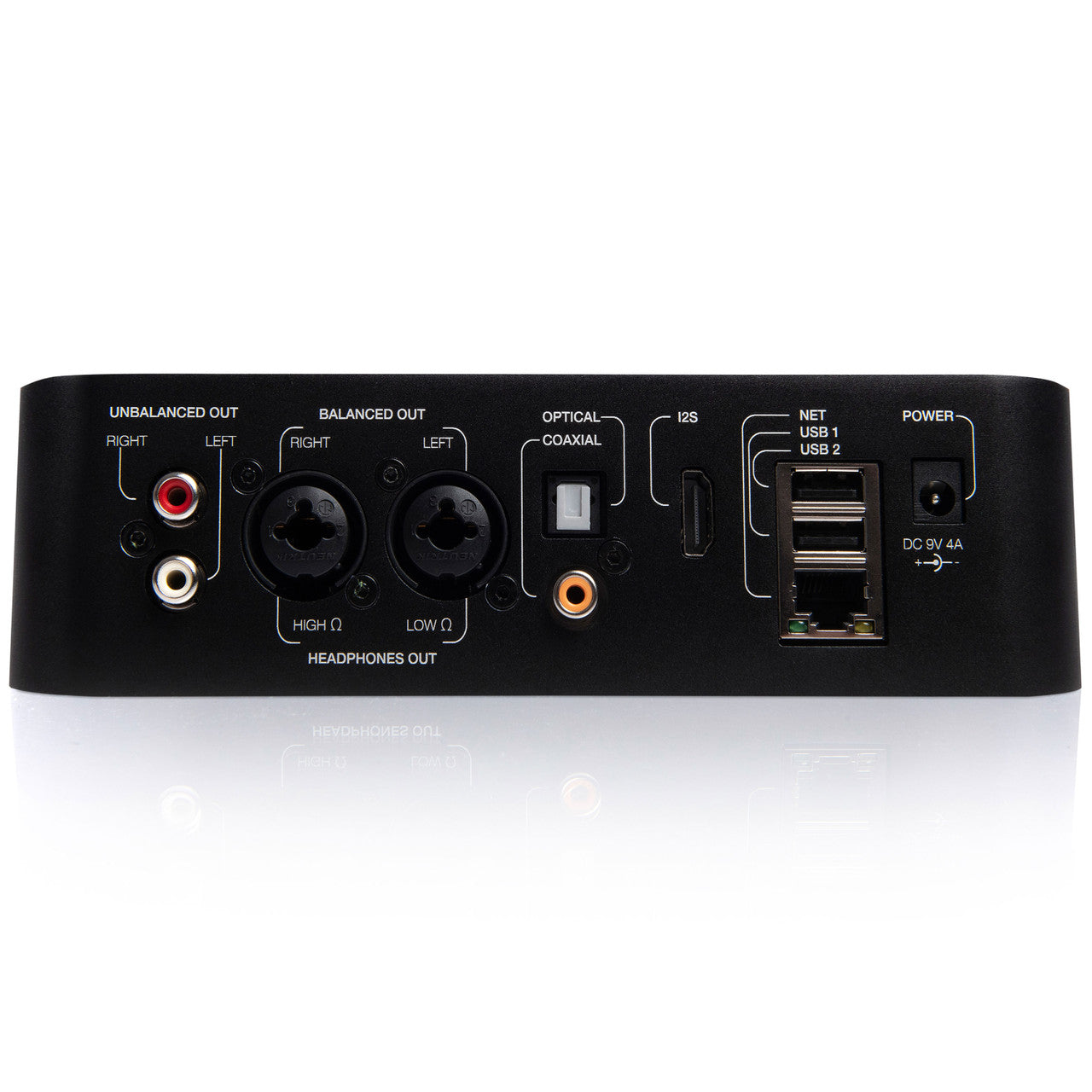

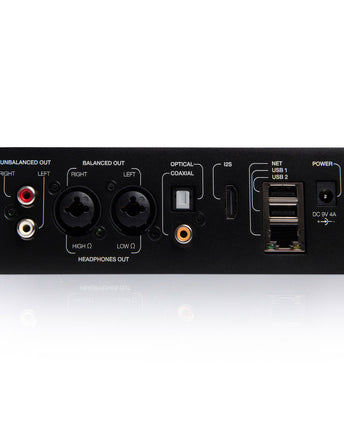

Analog Balanced and Unbalanced Output:
RCA: 2V RMS up to PCM 384kHz/24bit and DSD256
XLR: 4V RMS up to PCM 384kHz/24bit and DSD256
USB DAC Port: USB Audio Output: up to PCM 768kHz/32 bit and DSD256 (USB DAC required)
Coaxial and Optical S/PDIF: Digital Output: up to PCM 192kHz/24 bit
Headphones: Stereo Headphone Amplifier, dual output optimized for High and Low impedance Headphones: up to PCM 384kHz/24bit and DSD256
I2S over HDMI Output: Digital Output: up to PCM 384kHz/24bit and DSD256
Power & Connectivity
USB DAC Port: 2x USB 2.0 current up to 900mA per port
LAN: Gigabit 10/100/1000M
Wireless: Wi-Fi 802.11a/b/g/n/ac (2.4G and 5G)
Bluetooth: 5.0
Additional Info
Supported Formats: DSD, WAV, FLAC, Alac, Aac, Vorbis, Cue, Mp3 and others
UPNP DLNA: Renderer with Open Home support
Supported Services: Airplay via Shairport Sync, Spotify & Spotify Connect, TIDAL & TIDAL Connect, QOBUZ
Available Plugins: Youtube, Squeezelite, Radio Paradise, Podcasts, Pandora, Fusion DSP, Roon Bridge, Soundcloud, Mixcloud
CPU: Broadcom BCM2711, Quad Core 1.5 GHz
RAM: 2 GB DDR4
Internal Storage: 16 GB EMMC
Power Supply: 9V, 4A
Design
Designer: Design Narratives Ltd.
Weight: 2.5 kg
Dimensions: 19.5x19.5x5.5 cm
