Basic Parameters

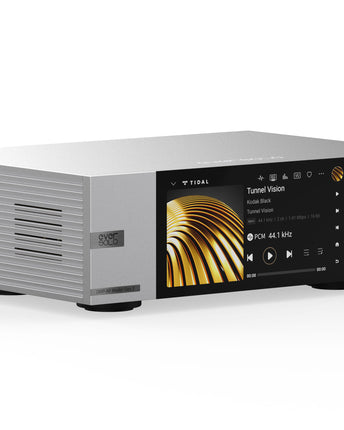

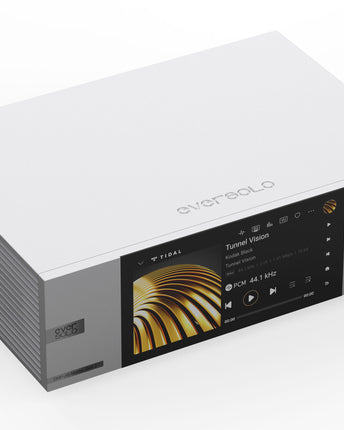

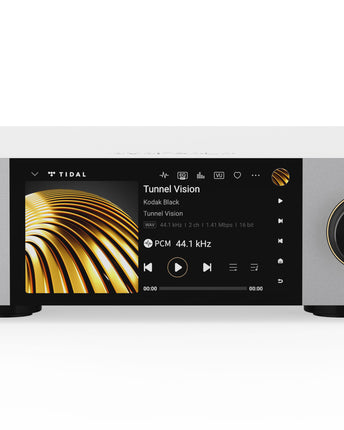

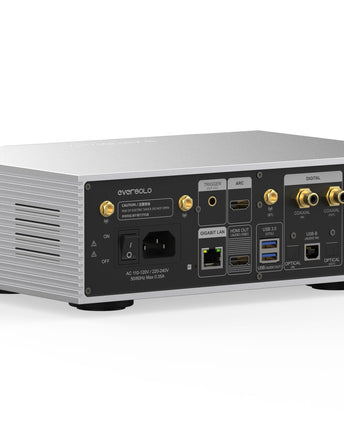

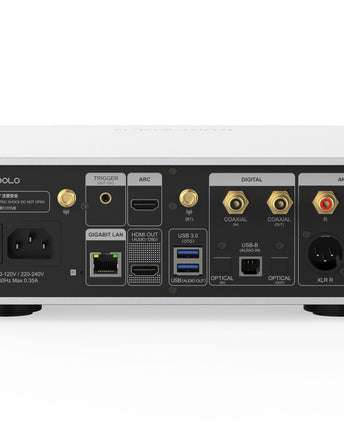

Model: EVERSOLO DMP-A6 Master Edition Gen 2
Display: 6-inch LCD Touchscreen
Internal Memory: 4GDDR4 +32G eMMC
DAC: ES 9038Q2M*2
Audio Processor: XMOS XU316
Op-amp Chip: OPA1612
Power Supply: Low Noise, High-Quality Linear Power Supply
Built-in SSD Slot: M.2 NVME 3.0 2280 Interface Protocol, Supports up to 4TB
USB-A Ports: USB3.0*2
Ethernet: RJ-45 (10/100/1000Mbps)
Wireless Network: WiFi 2.4G+5G Dual-Band
Music Playback and DAC Decoding: Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format
Music Services: TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music
Network Protocol: WebDAV, UPnP, NFS, SMB, Onedrive, Drop box, emby, Plex...
Streaming: Roon Ready, DLNA, TIDAL Connect...
Control Methods: Mobile App Control, Touchscreen Control, Tablet App Control,TRIGGER OUT,WOL
Audio Input and Output
Bluetooth Audio Input: Bluetooth BT5.0, Supports SBC/AAC
USB-B Audio Input:
USB Audio Compatibility: Windows (10, 11), Mac, Android, iOS
Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format
Optical/Coaxial Audio Input: Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format
HDMI ARC Input: Supports up to Stereo PCM 192KHz/24Bit
USB Audio Output: Supports up to Stereo DSD512 Native, PCM 768KHz 32Bit, MQA Format
HDMI Audio Output: DSD64 Native multichannel/PCM 192KHz multichannel raw output,up to 5.1
Optical/Coaxial Audio Output: Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format
Analog Audio Output: Pre-output: XLR (Balanced) + RCA(UnBalanced)
Audio Characteristics
XLR Output Audio Characteristics:
Output Level: 5.2V
Frequency Response: 20Hz~20KHz (±0.15dB)
Dynamic Range: >128dB
SNR: >128dB @A-wt
THD+N: <0.000087%(-121dB)
Crosstalk: >-125dB
RCA Output Audio Characteristics:
Output Level: 2.6V
Frequency Response: 20Hz~20KHz (±0.2dB)
Dynamic Range: >125dB
SNR: >125dB @A-wt
THD+N: <0.0001%(-120dB)
Crosstalk: >-124dB
Other Information
PSU: AC 110~240V 50/60Hz Max 0.35A
Rated Power: 13W
Dimensions: L 187mm * W 270mm * H 90mm
