Wireless
WiFi: IEEE802.11 b/g/n 2.4GHz, 5GHz
LAN: 10/100M RJ45
Bluetooth: V5.4, 15m
Bluetooth Transmit:
Codec: SBC, AAC, aptX, aptX HD, aptX LL, aptX AD, LDAC, LC3
1x Bluetooth TX, able to connect up to 1 Bluetooth speaker or headphones
Bluetooth Receive:
Codec: SBC, AAC, aptX, aptX HD, aptX AD, LDAC, LC3
2x Bluetooth RX, able to connect up to 2 smartphones
Broadcast: Auracast, 10m
Streaming Protocol: WiFi, AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, Roon Ready, DLNA, UPnP
Sound
Frequency Response: 20Hz-20kHz±1 dB
THD+N/SNR: ≤0.001 %/≥80 dB
Crosstalk: ≥80 dB
DAC: AKM AK4493SEQ
ADC: AKM7735
SRC: CT7302SL

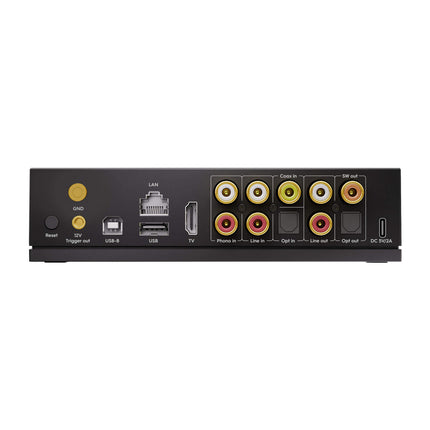

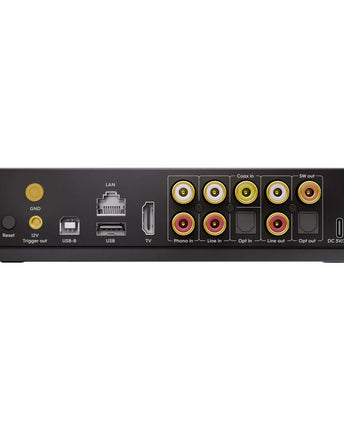

Audio Sources
Audio Input:
RCA Input x1: 2 Vrms

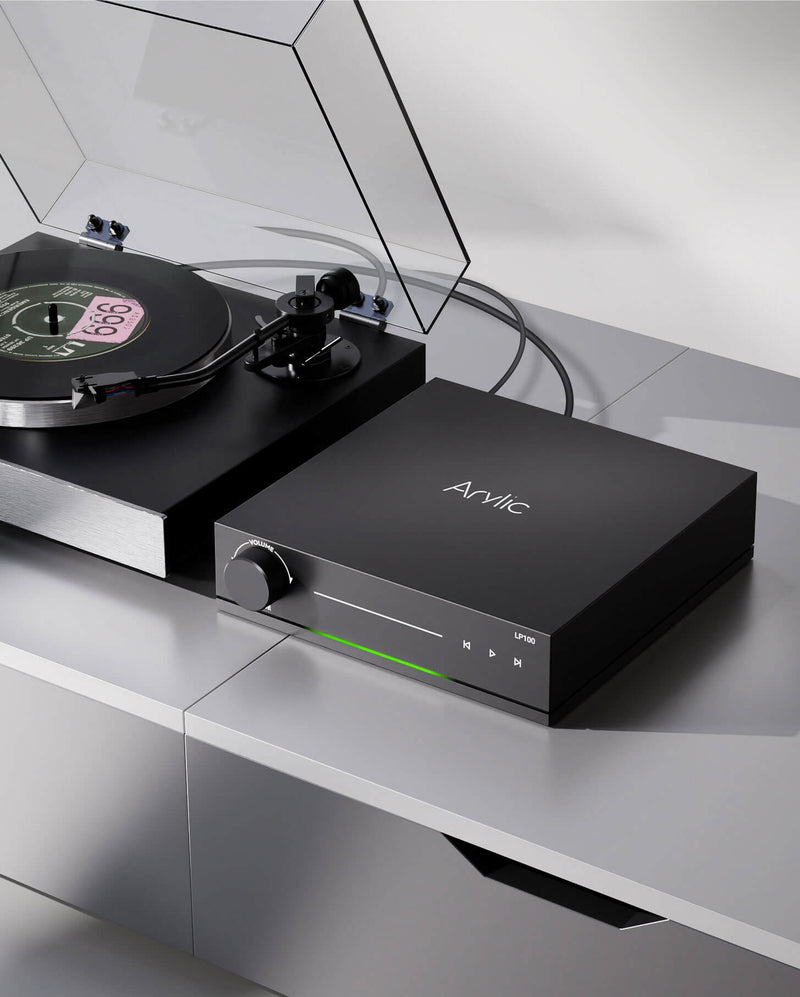

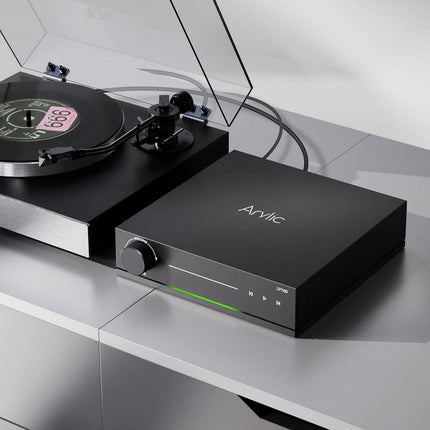

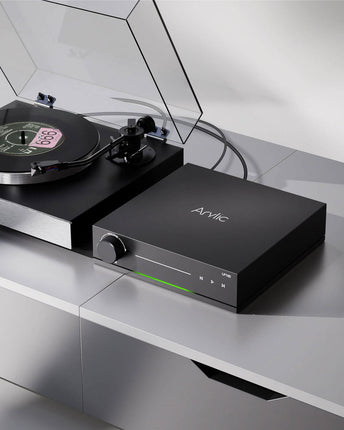

Phono Input x1: MM / MC, RIAA EQ Built in
Optical Input x1: PCM only, up to 192kHz/24bit
Coaxial In x1: Up to 192kHz/24bit
HDMI eARC Input x1: PCM only, CEC function supported
USB Host x1: USB disk drive playback, support resume playback Storage format: Fat16, Fat32, exFAT, up to 128GB Support codec: mp3, wma, m4a, aac, flac
USB-B DAC x1: For PC connection, Sample rate: 44.1~192kHz
Local Msuic: NAS, Mobile device music, USB flash drive music files
Audio Output:
Speaker Out x1: Banana Plug
Line Out x1: RCA, Max 2 Vrms output
Optical Output x1: Up to 192kHz/24bit output
Subwoofer Out x1: Max 3 Vrms output, Crossover frequency: 250Hz
Control
Buttons:

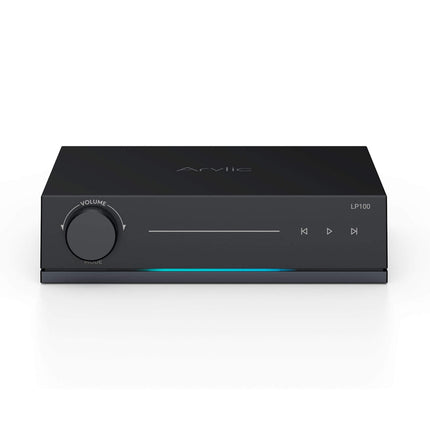

Rotary Knob
Switch between modes, volume, and power.
Touch Buttons: Play/pause, skip tracks, Auracast.
Reset Button: Repair WiFi/Bluetooth, restore to factory settings.
APP: GO CONTROL APP
Voice Control: Siri, Google Assistant
Remote Controller:
BLE remote control
Lifestyle knob control(optional)
General
Power Input: USB Type-C Port 5V/2A

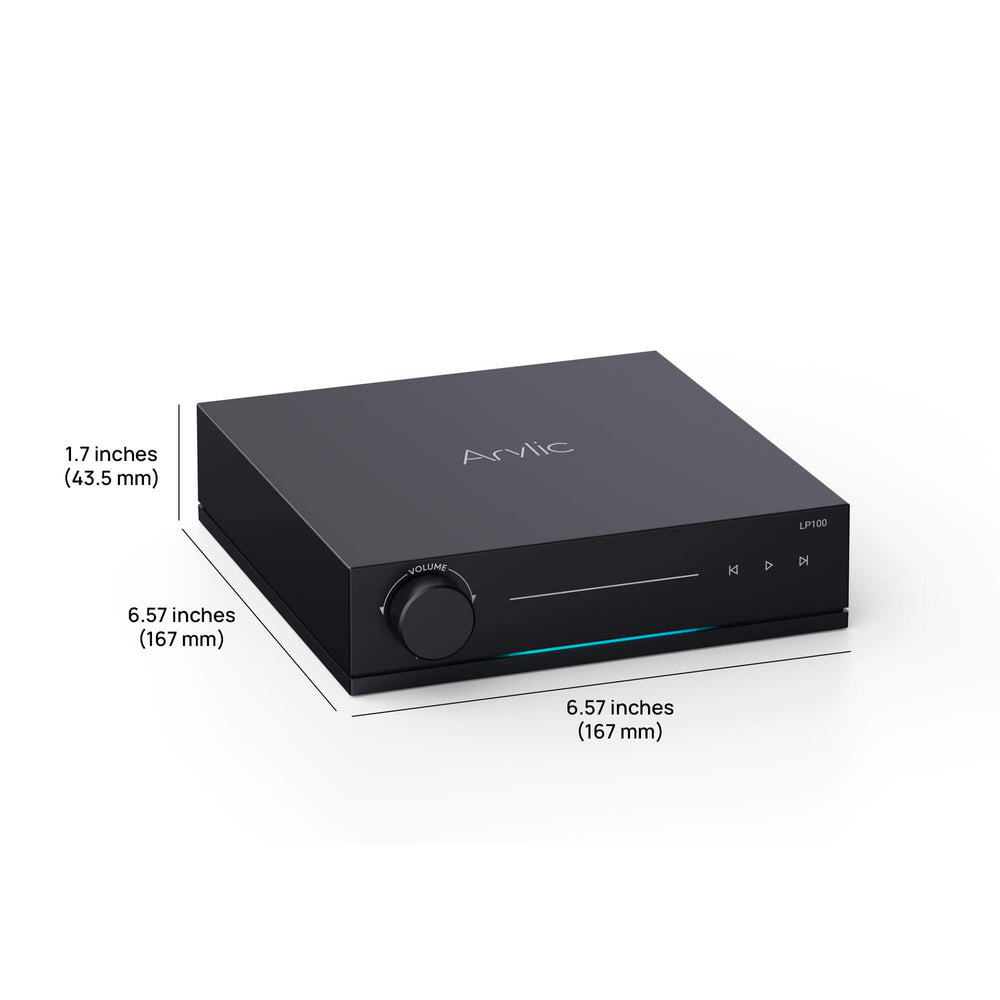

Size: 167x167x43.5 mm
Weight: 550g
Trigger Out: 12V
