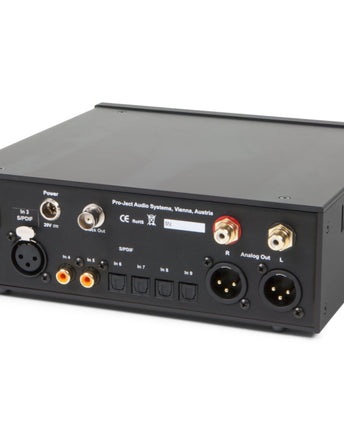

Pro-Ject DAC Box RS

DAC, cu 2 x convertoare Texas Instruments PCM-1792

Pro-Ject DAC Box RS

DAC, cu 2 x convertoare Texas Instruments PCM-1792

Форма

€890,95 / Парче €1.088,95

Întreabă când revine

Безплатно взимане от шоурума
    Технически спецификации
    • D/A конвертор 2 x Texas Instruments PCM-1792
    • Цифрови входове:
    • 2 x коаксиален (S/PDIF)
    • 2 x оптични (Toslink®)
    • 1 x USB B
    • 1 x AES/EBU
    • 1 x I²S
    • Честотна характеристика: 20Hz - 50kHz

    Код на продукта: 9120050438811

    • 30 дни право на връщане
    • Гаранция 24 месеца
    • Безплатна доставка за поръчки над 200 евро в България

    Полезни документи

    DAC Box RS

    High-End Digital/Analogue Converter

    DAC Box RS – ultimate state-of-the-art audio converter!

    The advanced DAC Box RS is a reference-class D/A converter for all kinds of digital stereo sound sources. It superbly acts as a superior USB audio interface for demanding computer audio, also features AES/EBU input and I²S interface for use with CD Box RS. For the engaged audiophile we provide full DSD capability (up to DSD128) over PCM. All inputs fully support 24/192kHz HD music data (optical inputs 96/24) in fully asynchronous mode.

    Additionally DAC Box RS incorporates a pair of the best audio grade DAC chips, PCM 1792, which only can be found in expensive high-end designs. 2 different digital filter settings are selectable to meet your favourite sound preferences. Additionally we realized that its also depending on customers taste and type of music/recording, what technology for the outputstage is preferable. More warm and relaxed sounding with Tubes or Solid State Class A with limitless details and dynamics. The DAC Box RS has both options to select!

    The whole audio circuitry design is ultra low noise and ultra linear with very low output impedance to avoid any negative interference with cables or pre-amps. Due to its class-leading audio performance DAC Box RS is an ultimate high end bargain!

    Technical Specifications

    D/A-converter: Double Texas Instruments PCM-1792

    8 x Oversampling design

    Sampling rates: 32/44,1/48/88,2/96/176,2/192 kHz, (except optical up to 96kHz)

    Selectable filter settings: „steep“ & „optimum phase“

    9 digital inputs: 2x coax (S/PDIF), 4x optical (Toslink®), USB B, 1x AES/EBU, 1x I²S

    Precision clock output: BNC (use with CD Box RS)

    Frequency response: 20Hz - 50kHz (+0/-1dB)

    Output stages: 6922 tube and solid state (switchable)

    Analogue out: RCA/Cinch & XLR

    Output voltage: max 4/2 Veff (XLR/RCA)

    THD:
    0,005% solid state out
    0,25% tube out

    Signal to noise ratio: 100dB

    Power consumption: <1 watt standby, 800/300mA max (tube/solid)

    Outboard: Power supply 20V/3A DC (included)

    Dimensions W x H x D: 206 x 72 x 200 (210mm with sockets)

    Weight: 1890g without power supply
