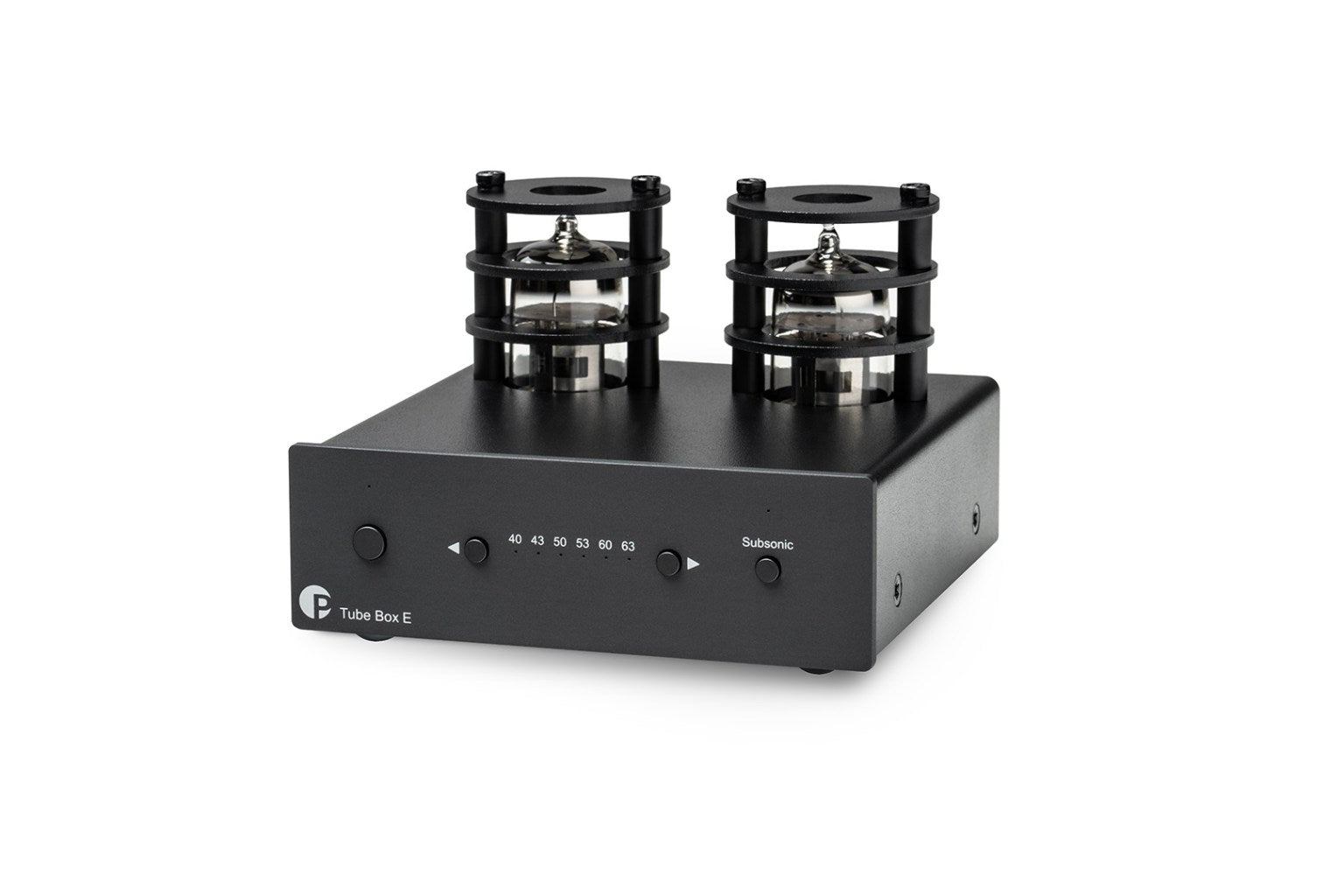

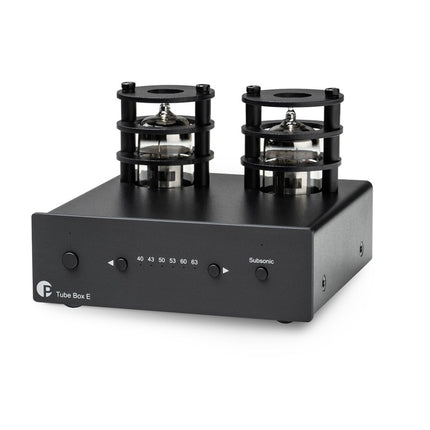

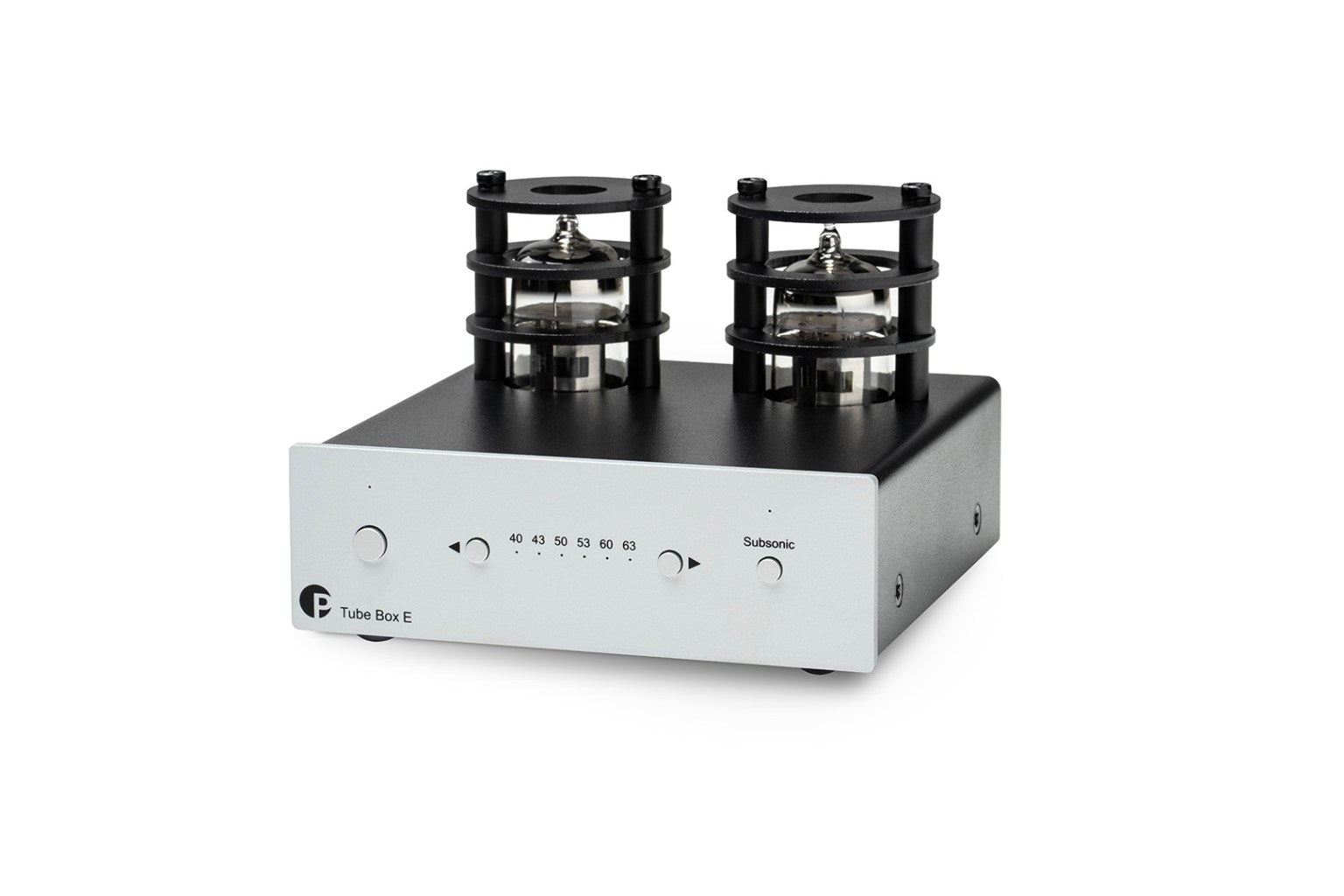

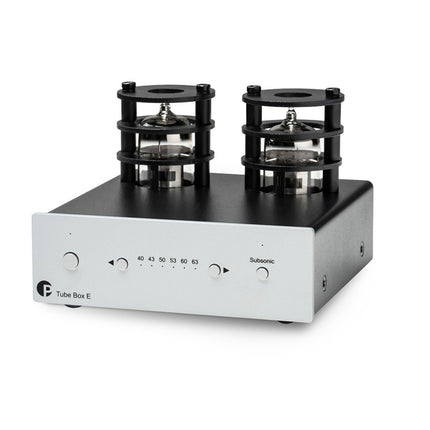

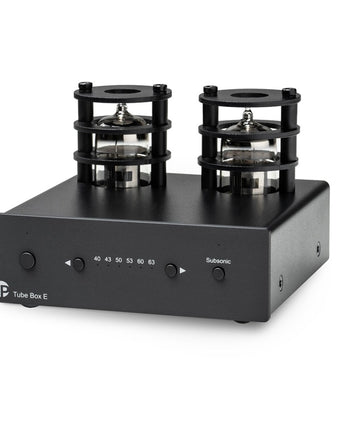

Pro-Ject Tube Box E

Tubes: 2 x ECC83 (12AX 7A)
Input impedance: 10 ohms, 100 ohms, 1 kohm, 2 kohms
Input capacitance/impedance: 47pF, 147pF, 267pF, 367 pF, 487 pF and 587 pF* / 47 kohms
Input gain: 40 dB, 43 dB / 50 dB, 60 dB und 63 dB
Noise floor: 77 dB (A weighted) at 40 dB input gain, 65dB (A weighted) at 50 dB and 63 dB input gain
THD: <0.03% at 40 dB input gain <0.07% at 50 dB and 63 dB input gain
RIAA-equalisation curve accuracy: +/- 0.5 dB/20 Hz - 20 kHz
Subsonic filter: at 20 Hz with 18 dB/octave

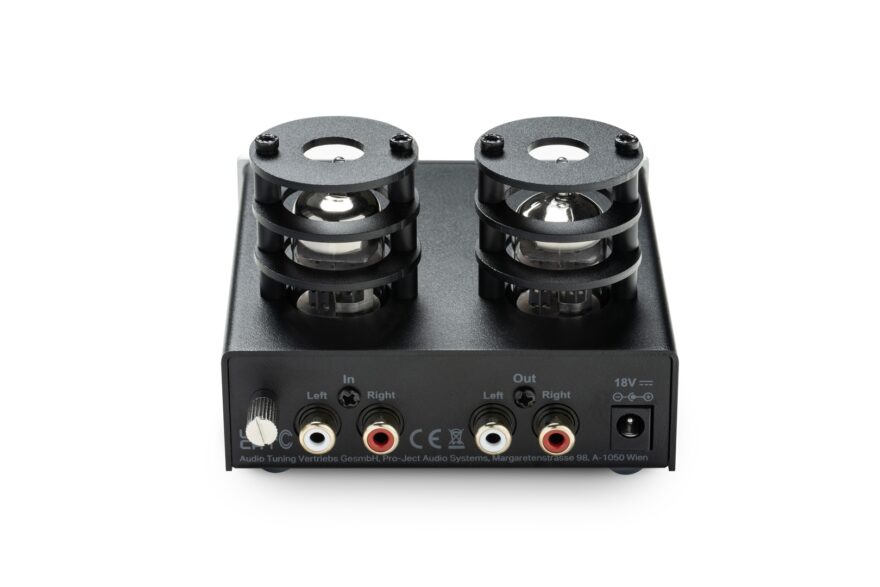

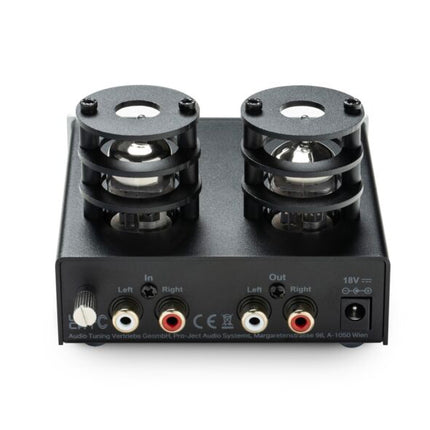

Input: 1 pair RCA/phono sockets
Line-level output: 1 pair RCA/phono sockets
Outboard power supply: 18 V / 1.000 mA DC, suitable for your country's mains supply
Power consumption: 470 mA DC, <1W in standby
Dimensions W x H x D with sockets: 103 x 73 x 131 mm
Weight: 450 g without power supply
