Design: Power line conditioner with DC blocker

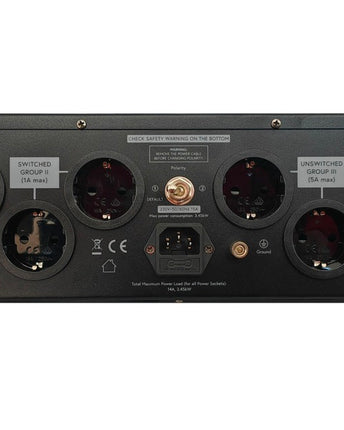

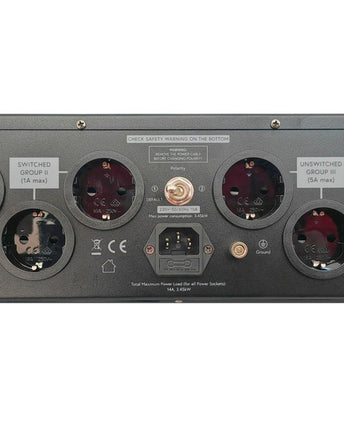

Sockets:
Schuko type (230V – 240V):
4 switched
4 unswitched
4 groups (2 sockets each):
Switched:
I (3A max) digital accessories [DC Blocker]
II (1A max) sound sources
Unswitched:
III (5A max) preamplifiers & accessories [DC Blocker]
IV (5A max) amplifiers [DC Blocker]
USB-A ports (linear power supply) : x 2 (5V)
Total maximum power load:
14A, 3450W (total for all power sockets and USB ports)
For each group:
Group I (3A max)
Group II (1A max)
Group III (5A max)
Group IV (5A max)
USB ports 2.1A (total)
Noise filter: -10dB ~ 55dB (2 - 100MHz)
Max surge current: 4500A [8/20µs – one time]
Max spike volt: 3000V [10ma]
Max clamping volt: 775V [8/20µs]
Max energy: 140J [10/1000µs]
Incoming DC blocking: Up to 12000mV (12V)
Features / accessories:
Surge protection
Overload protection
Phase detector with the polarity switch

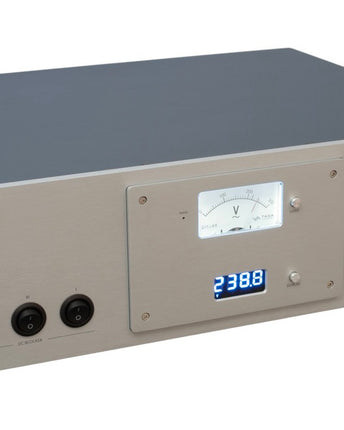

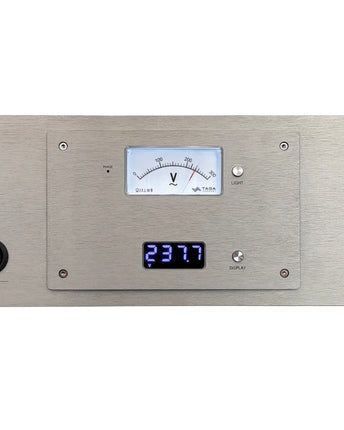

Analog Voltage indicator (accuracy ±5%) with backlight
Digital Voltage/Ampere/Watt indicator (accuracy ±3%)
USB charging
Schuko-IEC C13 power cord (1.5 m)
AC power / power consumption:
230V 50/60Hz
2.0W (Switched OFF - without any external devices plugged in)
3.5W (Switched ON - without any external devices plugged in)
+ 0.2W (with the Backlight engaged)
Dimensions (H x W x D): 13.3 x 43 x 34 cm (incl. feet)
Weight: 9.2 kg / pc.
