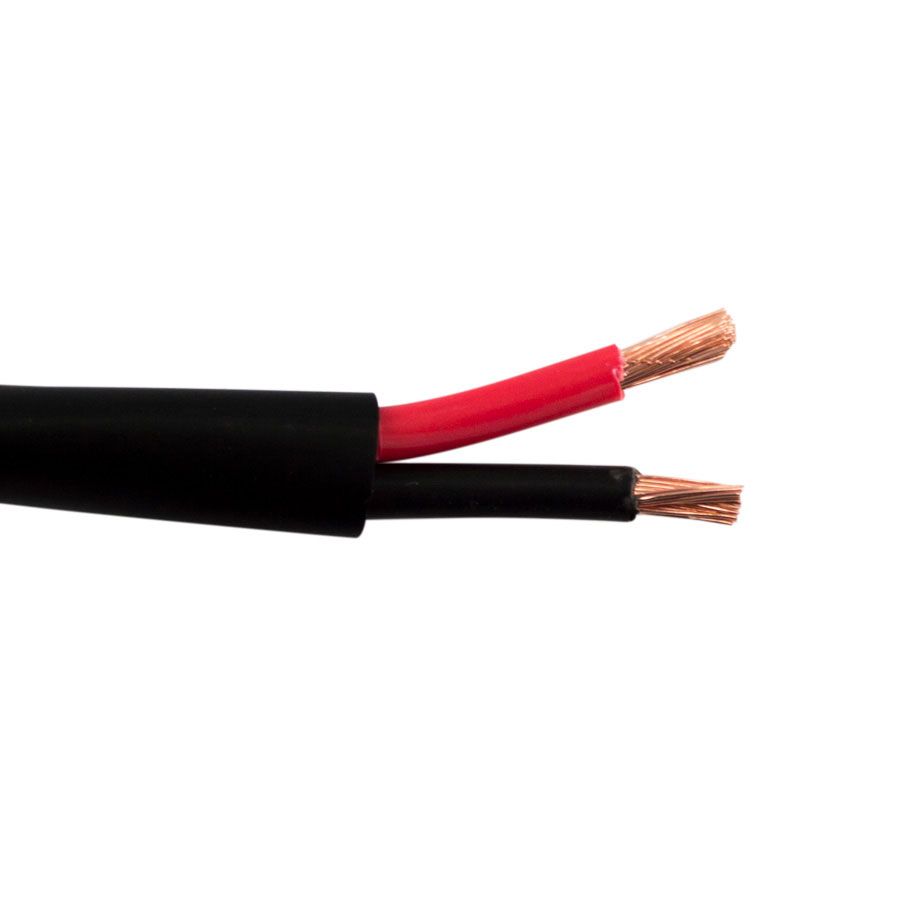

Construction Characteristics
Conductor Material: Stranded Bare Copper
Size: 4.0mm2*2C 56 stranded
Construction: 0.30+/-0.005mm
Insulation
Material: LSZH
AVG.Thickness: 0.45mm
Diameter: 3.5+/-0.15mm
Colors: Red,Black
Jacket
Material: LSZH
Nom.Thickness 0.75mm
Diameter 8.5﹢/-0.40mm
Rip Cord: Yes
Color: Black(similar to RAL9004)
Electrical & Physical Characteristics
Operating Temperature Range: -20℃ ~ +80℃
Voltage Rating: 300 V
Conductor DC resistance (20 ℃): <=4.95 Ohms
Sheath Physical Properties: 100℃*168h
Before Aging
Tensile Strength: >=10.0Mpa
Elongation: >=125%
After Aging
Tensile Strength: >=8.0Mpa
Elongation: >=100
