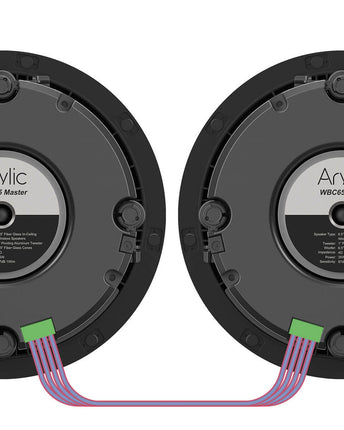

Master Speaker (Stereo set / Mono)
Firmware Version: 4.6.509530.45
Power Supply: 24V/4.16A
Connectivity:
WiFi: 2.4G/5G、AirPlay 2
Bluetooth: 5.0 SBC/AAC, 15M, BT Receiver
Wired Network: Ethernet Single 10/100M RJ45
Audio Format:
Decoding up to 192khz/24bits
Output up to 44.1khz/16bits CD quality.
Protocols: AirPlay 2, DLNA, UPnP, Spotify Connect, Qplay
NAS: Support NAS with DLNA support
Audio Input:
Analog: AUX Input(1Vrms)
Audio Output:
Analog: Speaker Output
Stereo / Mono Switch:
Switch Stereo / Mono Output:
Stereo: Master speaker output Right channel, Slave speaker output Left channel
Mono: Left + Right Channel for both speakers
Mode Button: Change Source Mode: WiFi / BT / AUX in
Bass: 6.5 inch kevlar bass cone driver rubber overhang
Tweeter: 1 inch aluminum dome driver EOS waveguide design
Sensitivity: Bass: 86±3dB
Size: 23cmx10.5cm (deep)
High/Low Frequency:
LF 4Ω 50W*2
HF 8Ω 15W*2
Frequency Response:
LF: 60Hz-2500Hz
HF: 3000Hz-20000Hz
SNR/THD+N: ≥85dB/<0.9%
Crosstalk: >55dB
Slave Speaker (Stereo set only)
Connections
Audio Input Speaker Out
Speaker
Bass: 6.5 inch kevlar bass cone driver rubber overhang
Tweeter: 1 inch aluminum dome driver EOS waveguide design
Sensitivity: Bass: 86±3dB
Size: 23cmx10.5cm (deep)
