Audio
Amplifiers: Three class-D digital amplifiers precision-tuned for the speaker's unique acoustic architecture.
Low-frequency driver: One 3.5 x 4.4 in / 90.8 x 111.9 mm carbon-filled polypropylene
High-frequency drivers: Two .63 in / 16 mm silk
Frequency Range: 45 Hz-20 kHz ±3dB
Max Short-Term SPL: 96dB @ 1m with PoE+
Nominal Coverage Angle: 240° horizontal x 140° vertical
Microphones: The far-field microphone array uses advanced beamforming and multi-channel echo cancellation for quick and accurate voice control and Trueplay tuning. Toggle off the mic switch to disconnect the onboard microphones electrically.
Adjustable EQ: Use the Sonos app to adjust bass, treble, and loudness.
Trueplay: This software measures the acoustics of the room then fine-tunes the EQ. Compatible with iOS and Android devices.
Details + Dimensions
Dimensions:
Height: 182.5 mm
Width: 120 mm
Depth: 130.5 mm
Weight: 2.03 kg
Colours: Black, White
Finish: Matte

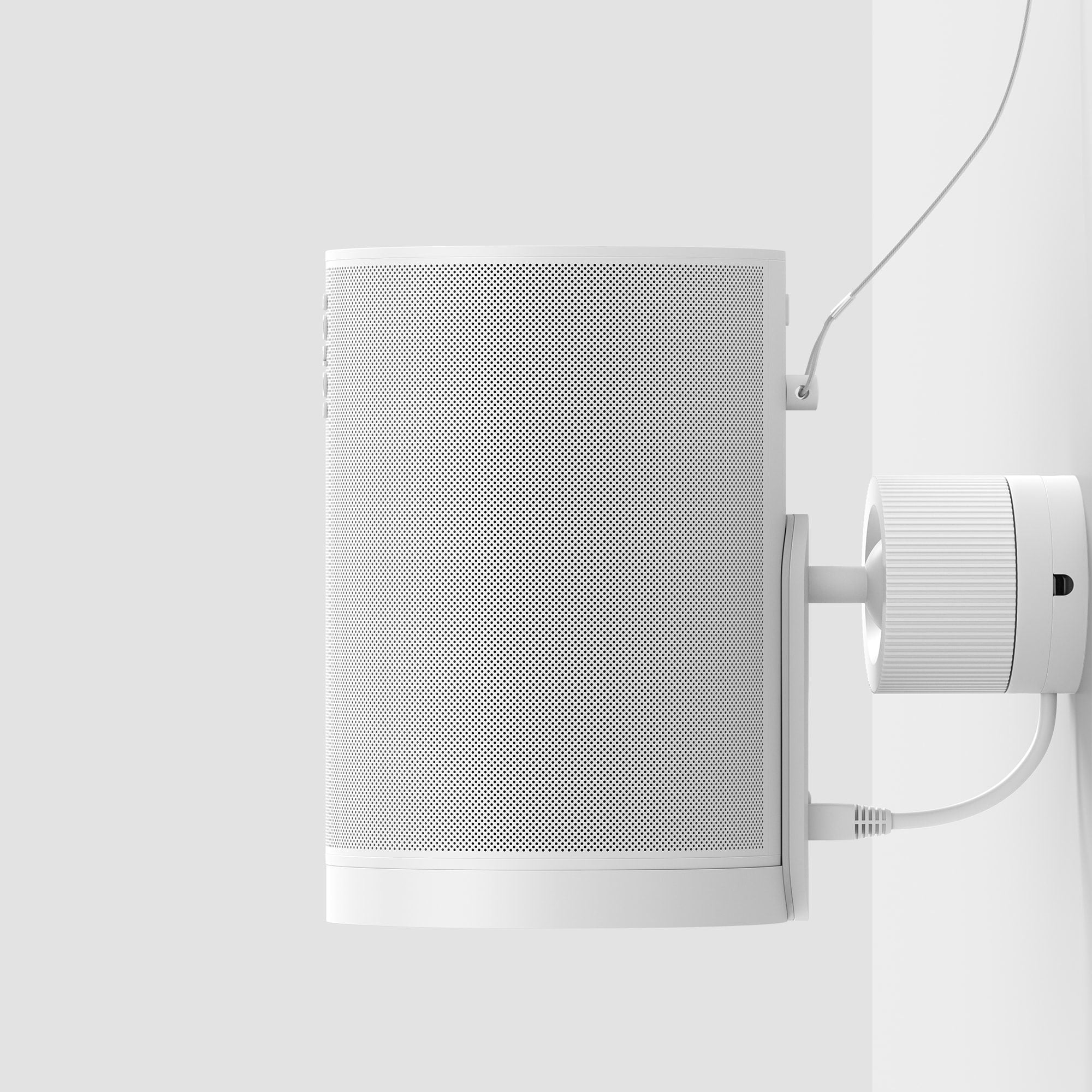

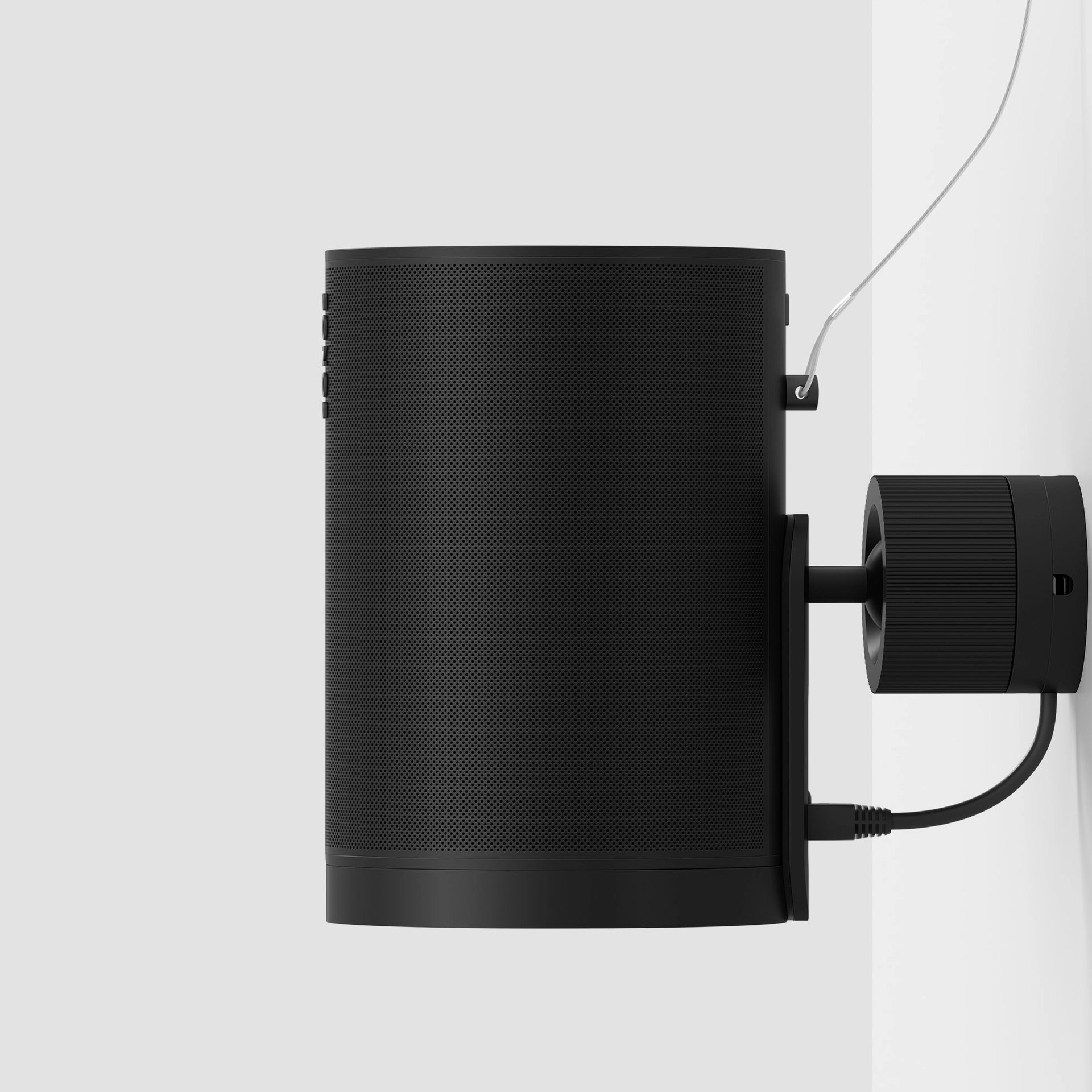

Threaded insert: Included optional eyebolt can be used to provide a secondary safety attachment point to the speaker.
Hook receptacle: Increases stability when speaker is paired with the Surface Mount and positioned in a non-portrait orientation

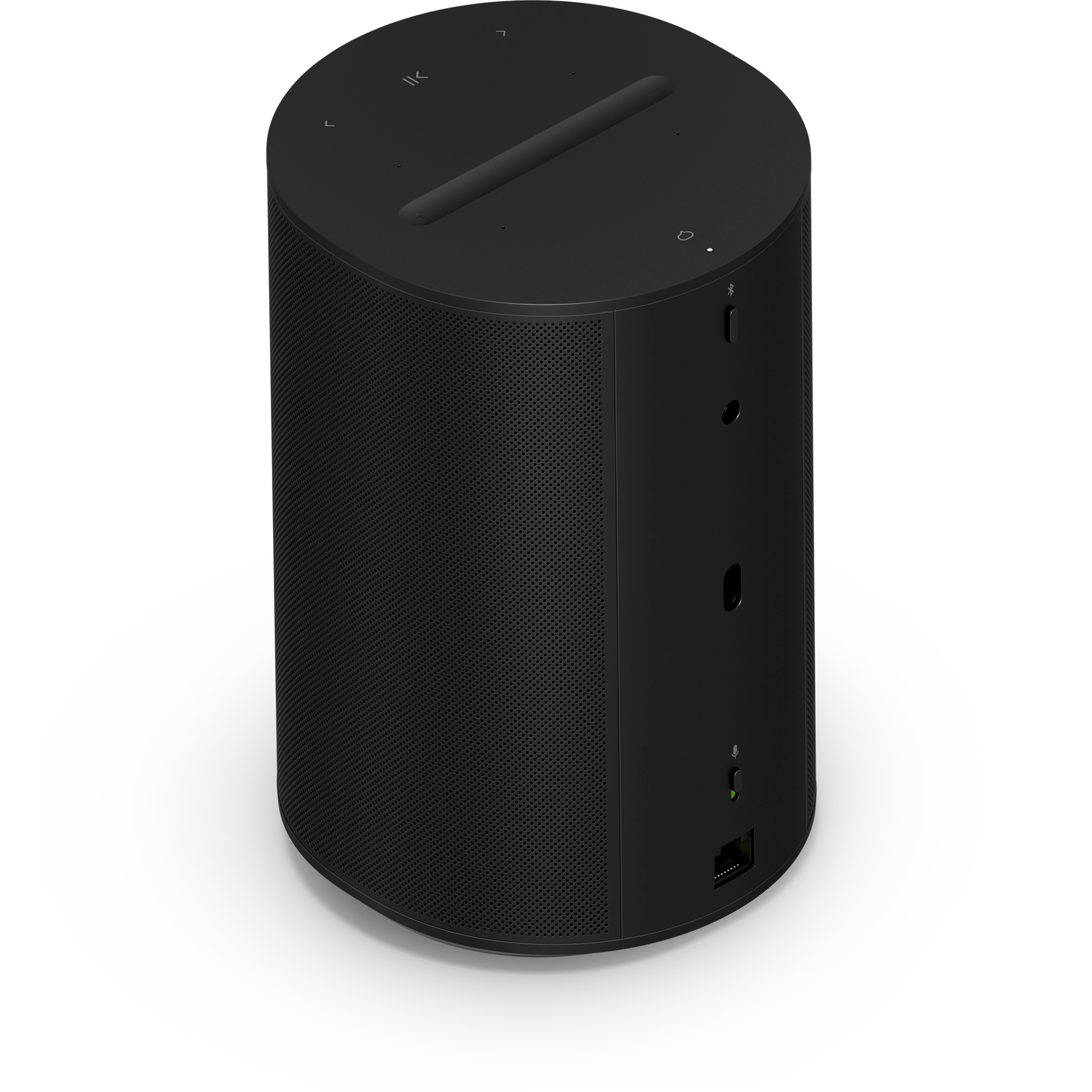

Controls: Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, mute your voice assistant, and group or ungroup Sonos products.

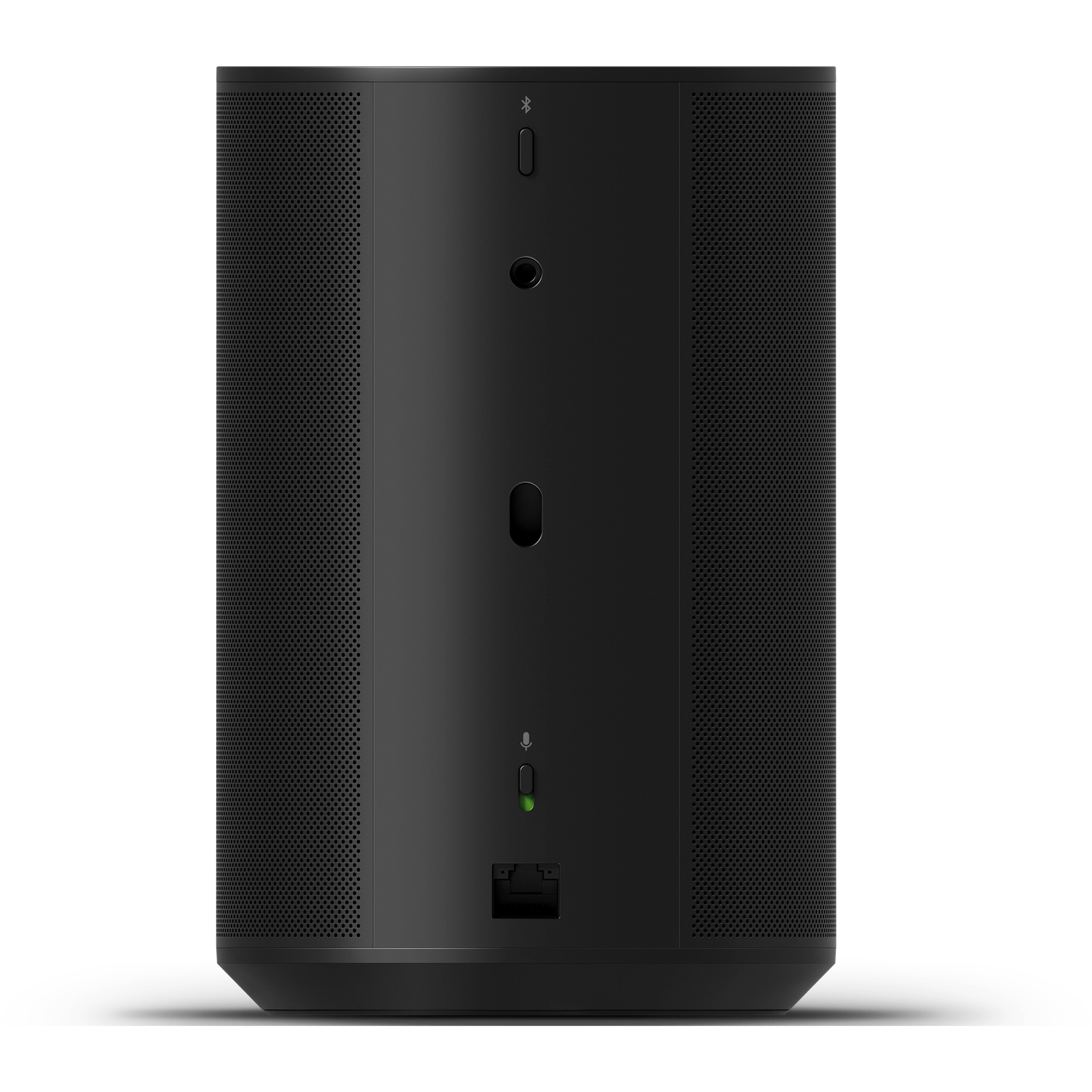

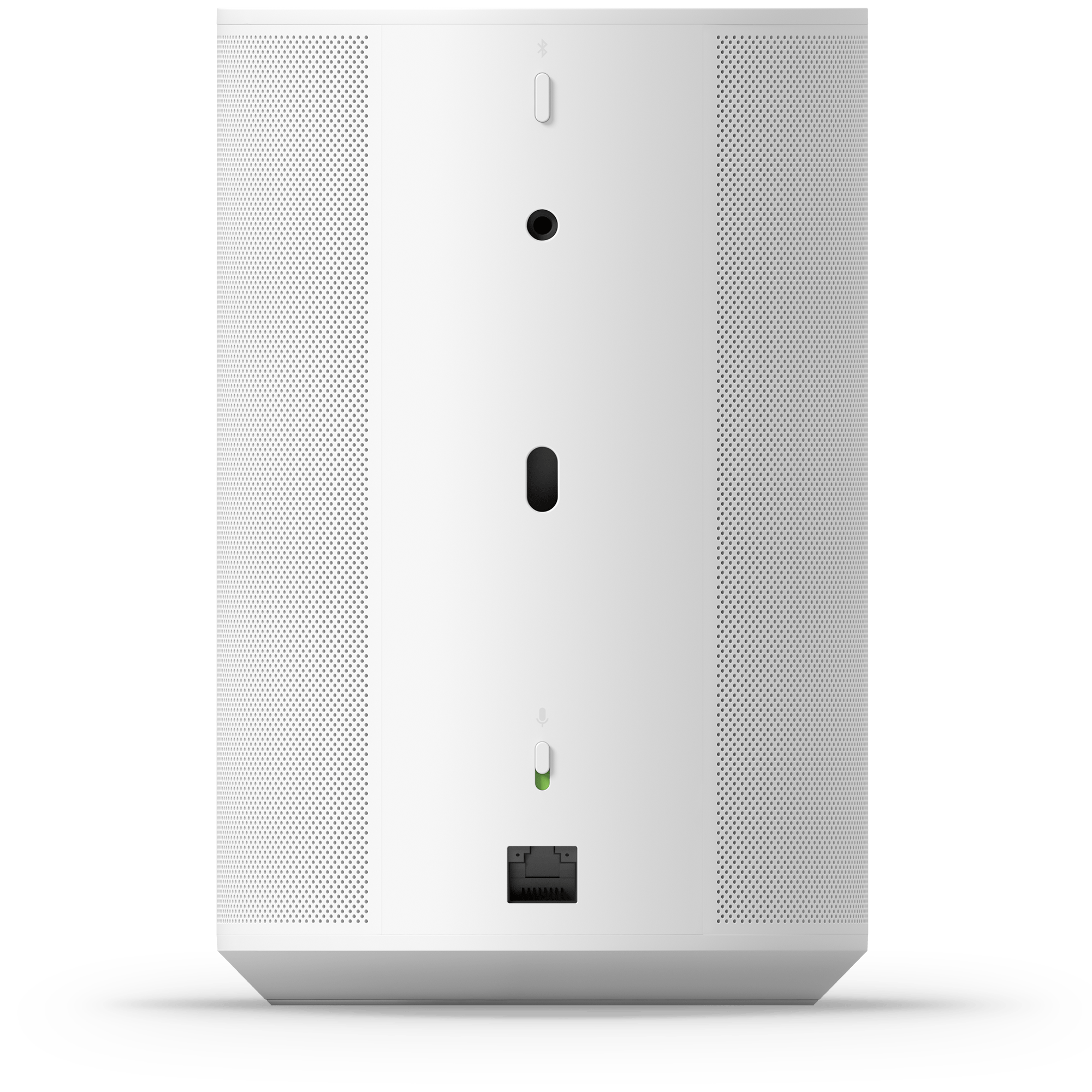

Bluetooth Button: Press to pair with a Bluetooth device.
Mic switch: Toggle off to disconnect the onboard microphones electrically.
LEDs: An LED on the front of the product indicates power and mute status. The white LED on top of the product indicates voice assistant status. A pair of LEDs on the network port indicate power status (yellow) and network activity (green).
Power + Connectivity

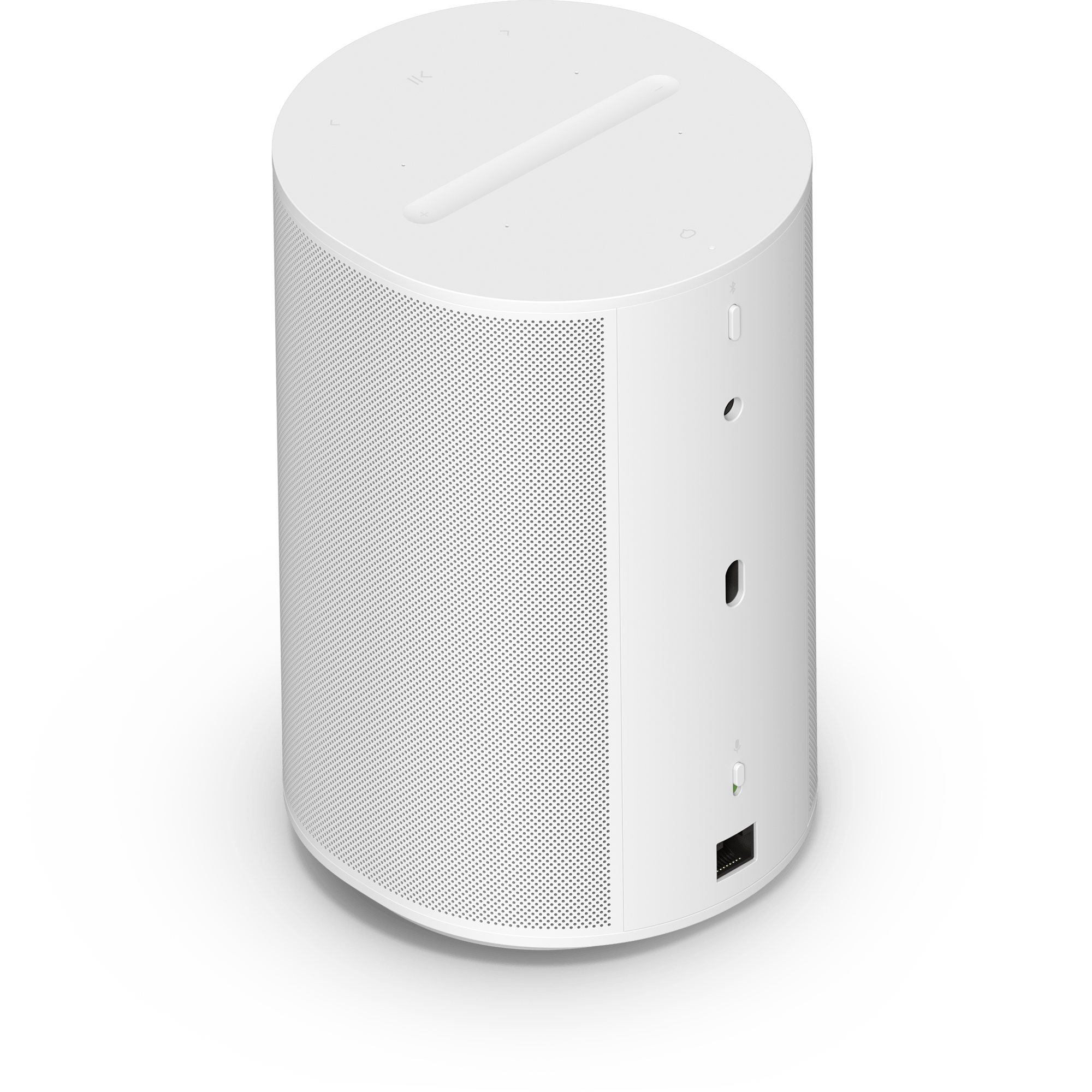

Ethernet port: 100Base-T network connection and power
Power: Power over Ethernet (PoE) provides power and data over a single Ethernet cable. Optimised for PoE+ and compatible with PoE.
WiFi: Compatible with WiFi 6. Connect to WiFi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router.
Bluetooth: Bluetooth 5.0 supports audio streaming from any Bluetooth-enabled device.
CPU:
Quad Core
4xA55 1.4GHz
Memory:
2GB DDR4
8GB eMMC
Apple AirPlay 2: Works with AirPlay 2 on Apple devices iOS 11.4 and higher.
