Architettura Sonora

Big Cylinder

Пасивна всенасочена тонколона, с 8" коаксиален говорител

Architettura Sonora

Big Cylinder

Пасивна всенасочена тонколона, с 8" коаксиален говорител

Форма

€3.225,95 / Брой

Попитай за наличност

Избран вариант конкретно

    Технически спецификации
    • Версия: Пълна гама с кросоувър на борда на високоговорителя
    • Тип: 8" коаксиален (двоен концентричен)
    • Номинален импеданс: 8Ω
    • Кросоувър: 2 начина на борда
    • Честотен диапазон: 44-20 000Hz (-6dB)
    • Чувствителност (1W - 1m): 91 dB
    • Пикова мощност на високоговорителя: 400W
    • RMS мощност на високоговорителя: 200W
    • 30 дни право на връщане
    • Гаранция 24 месеца
    • Безплатна доставка за поръчки над 200 евро в България

    Полезни документи

    Продуктов лист Architettura Sonora Big CylinderДокумент, публикуван от производителя

    BIG CYLINDER

    Majestic matter performance

    Majestic matter performance

    The Cylinder family is enriched with a new addition, the Big Cylinder.

    Larger in size, with an 8" full-range internal loudspeaker, Big Cylinder is the only speaker of its line featuring a deflector made of the same material as its upper body, thus resulting in high acoustic performance, while highlighting the materiality of its constituent parts.

    LIGHTING MOOD SOLUTIONS

    Light option, consisting of a Led Strip in a special notch around the loudspeaker area.
    The Light spreads in the lower part of the product, due to the reflection of the deflector.

    Lamp Specs

    Light source: LED module: 1x7W

    Rated output: 7W

    Led colour temperature: 3000K

    Power supply: 90-260V

    Klondike Special treatment

    The KLONDIKE Special Finishing Collection features a multy-layered metallic participle coating on concrete or composite resin.

    The Klondike special line can only be installed indoors or under outdoor covered areas, with the only exception of Corten (which can also stay outdoors)

    Klondike Variants

    SHINING YELLOW

    Only for Indoors or external Covered areas

    SHINING GREEN

    Only for Indoors or external Covered areas

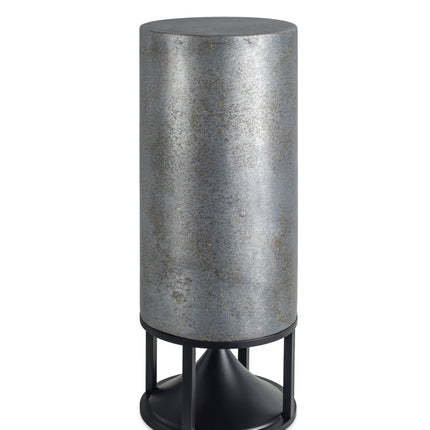

    SHINING DARK GREY

    Only for Indoors or external Covered areas

    CORTEN EFFECT

    Also for OUTDOOR use

    GOLD

    Only for Indoors or external Covered areas

    SILVER

    Only for Indoors or external Covered areas

    BRONZE

    Only for Indoors or external Covered areas

    Materials

    CONCRETE WHITE

    Porous

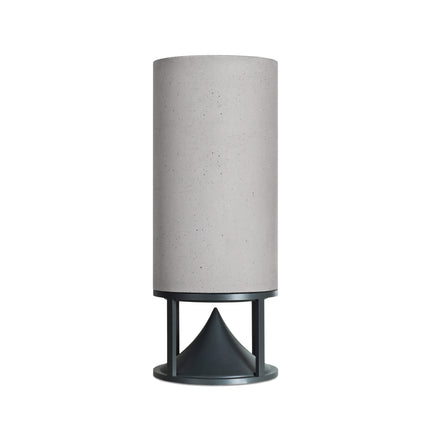

    CONCRETE GRAY

    Porous

    CONCRETE DARK GREY

    Porous

    CONCRETE RED

    Porous

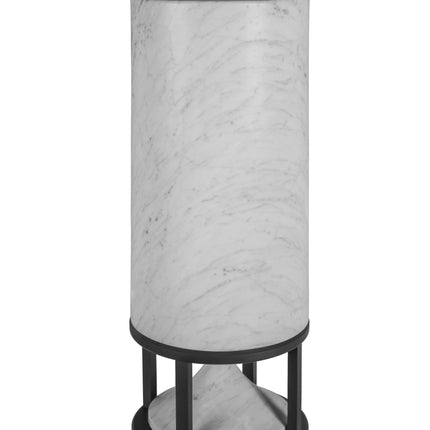

    CARRARA STONE

    White Marble

    MARQUINA STONE

    Black Marble

    CLASSIC TRAVERTINE

    PorousPorous/Plastered

    WALNUT TRAVERTINE

    Porous/Plastered

    ALTERNATIVE STONES

    Other Marbles

    New Column New Column New Column New Column

    Version

    Full range
    with crossover
    on board

    Subwoofer
    without
    crossover

    Subwoofer
    with crossover
    on board

    Speaker Type:

    8” coaxial (dual concentric)

    8”woofer

    8” woofer

    Nominal Impedence:

    8Ω

    8Ω

    8Ω

    Crossover:

    2 ways
    on board

    Recommended DSP Settings: HP
    35 Hz 12dB/oct;
    LP 120 Hz 12 dB/oct

    LP=150 Hz12 dB/oct

    Frequency Range:

    44-20.000Hz (-6dB)

    38-150Hz (-6dB)
    (recommended DSP setting)

    38 -150Hz (-6dB)

    Sensitivity (1W - 1m)

    91 dB

    91 dB

    91 dB

    Speaker Peak Power

    400W

    400W

    400W

    Speaker RMS Power

    200W

    200W

    200W

    Lighting Mood

    Optional*

    Optional*

    Optional*

    High-z on Board

    Optional
    (Voltage 70-100 V
    Power 30-60 W)

    Optional
    (Voltage 70-100 V
    Power 30-60 W)

    Optional
    (Voltage 70-100 V
    Power 30-60 W)

    Body & Deflector
    Materials

    Concrete (gray, black, white, red),
    marble, travertine and alterntive
    stones

    Concrete (gray, black, white, red),
    marble, travertine and alterntive
    stones

    Concrete (gray, black, white, red),
    marble, travertine and alterntive
    stones

    Metal Components
    Materials

    Stainless steel, oxidized brass,
    painted graphite aluminum,
    painted silver aluminum

    Stainless steel, oxidized brass,
    painted graphite aluminum,
    painted silver aluminum

    Stainless steel, oxidized brass,
    painted graphite aluminum,
    painted silver aluminum

    Dimensions:

    680h x 270 cm
    (26.8h x 10.6 inches)

    680h x 270 cm
    (26.8h x 10.6 inches)

    680h x 270 cm
    (26.8h x 10.6 inches)

    Weight:

    42 kg
    (92.59 pounds)

    42 kg
    (92.59 pounds)

    42 kg
    (92.59 pounds)

    *(Power Type > 5,8 - Light temp. > 3000°K - IP Rates > IP65 - Supplied Power Supply > external
    Input > 100-240V ac-0,55A - Output > 24Vdc -0,84 A - Features > IP67 non dimmerable - Class > 2 - Size > 12,5x3,2x2,6 cm)
