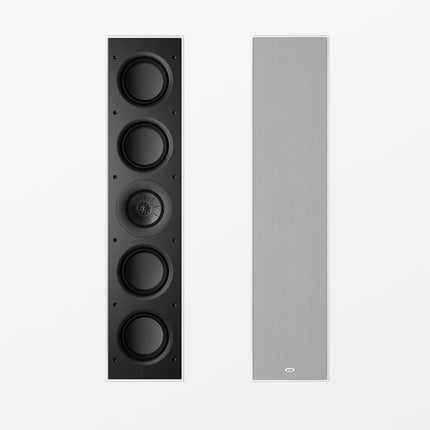

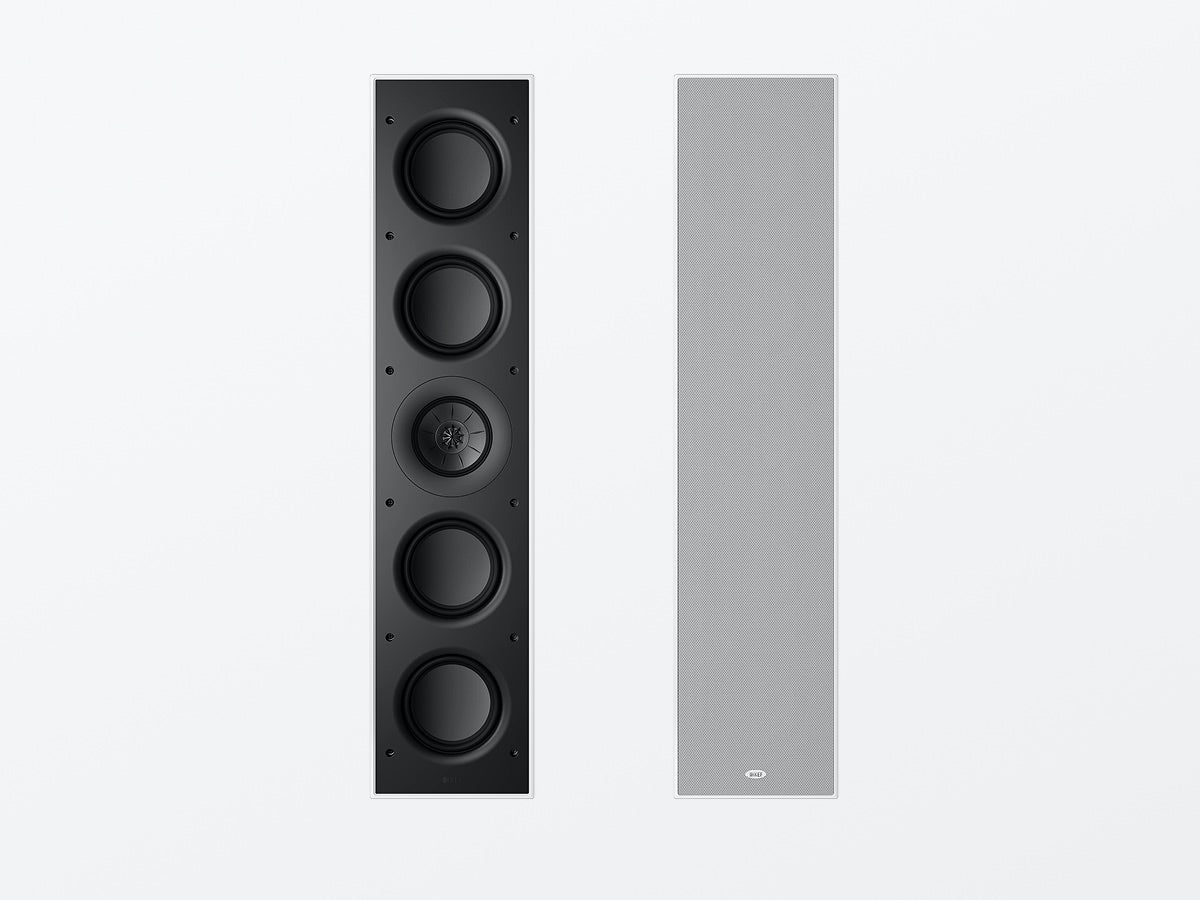

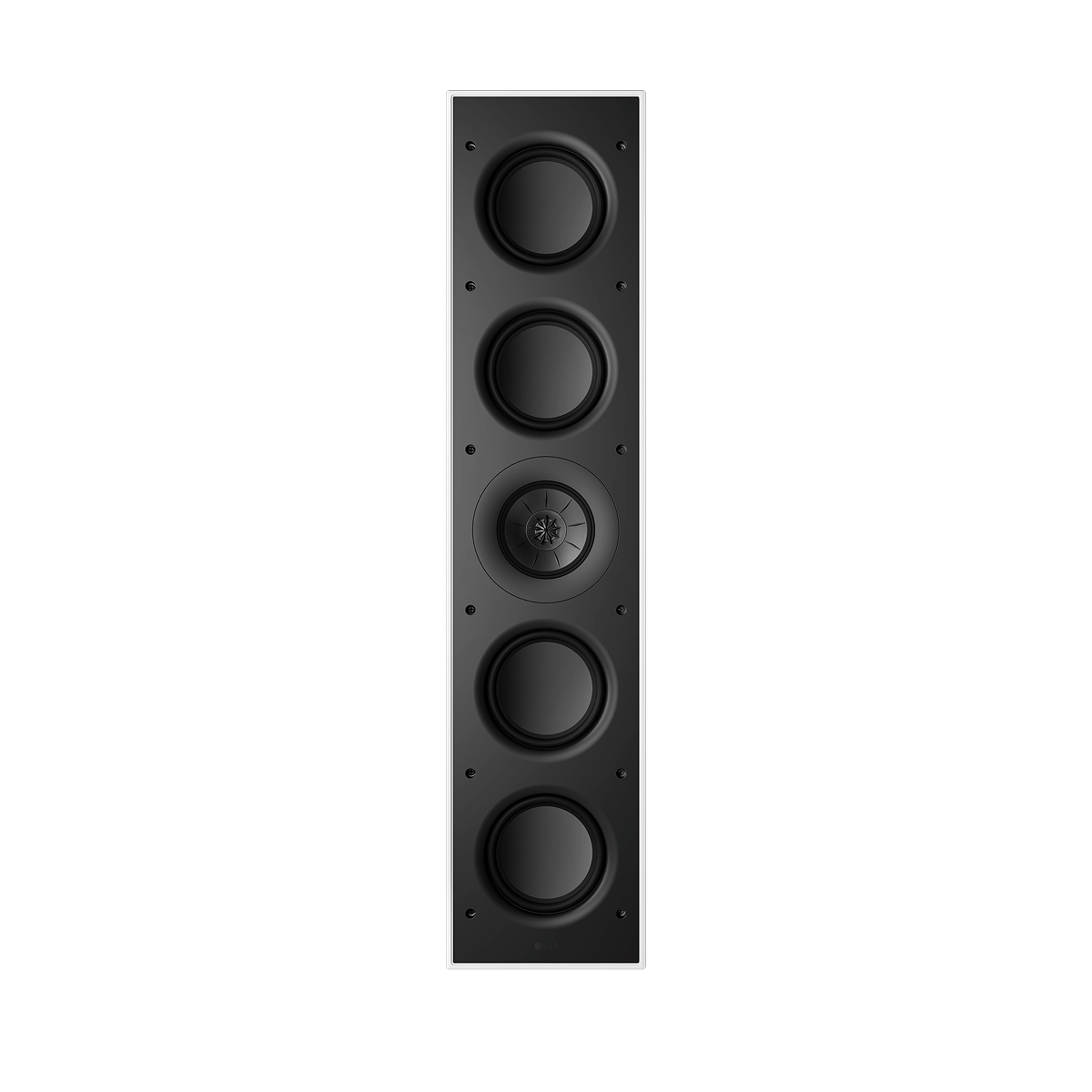

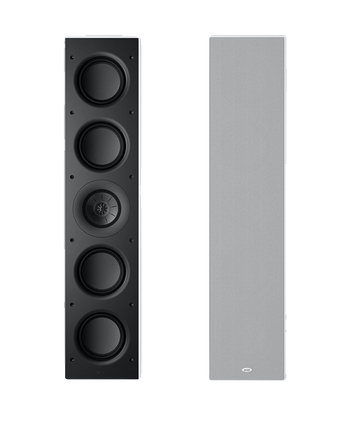

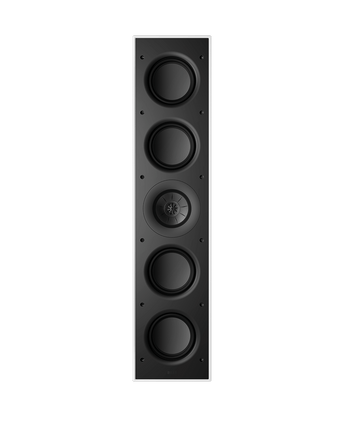

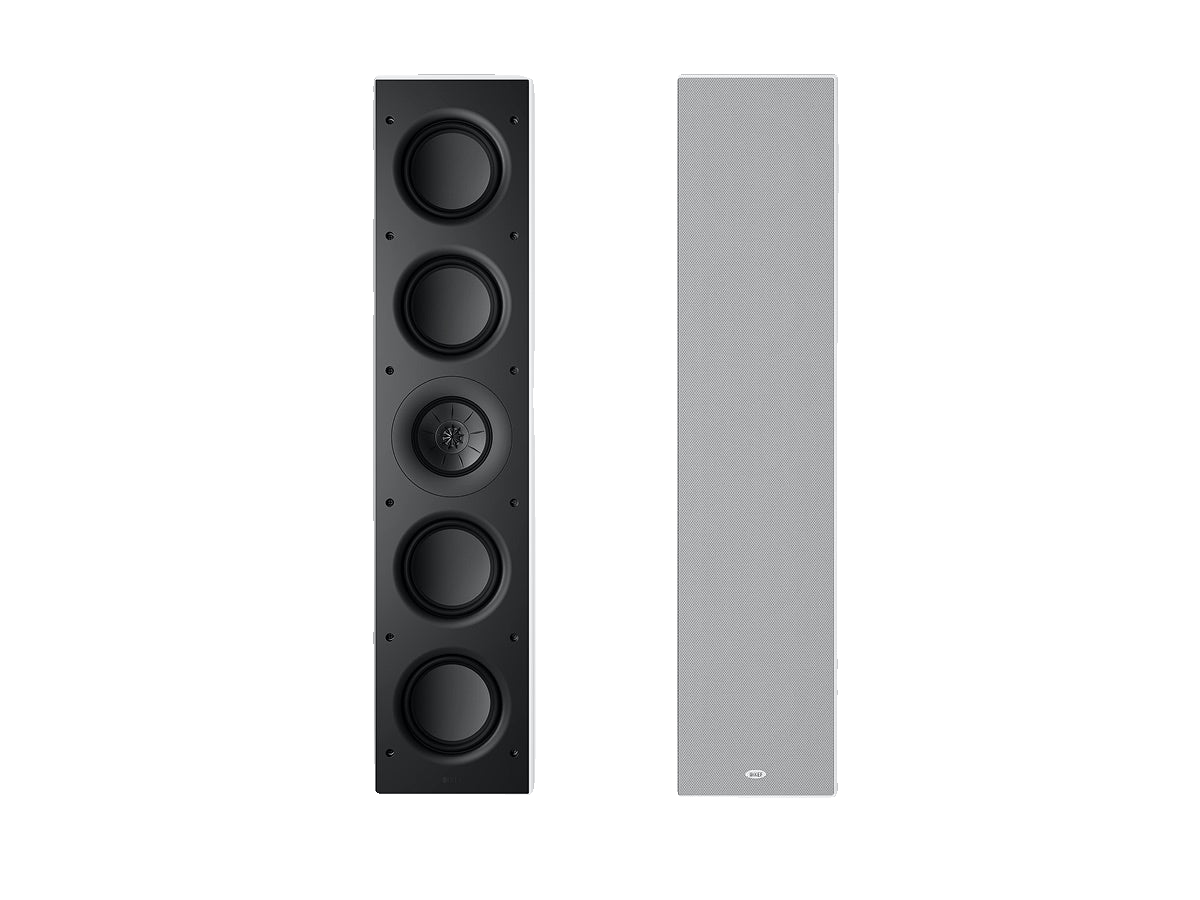

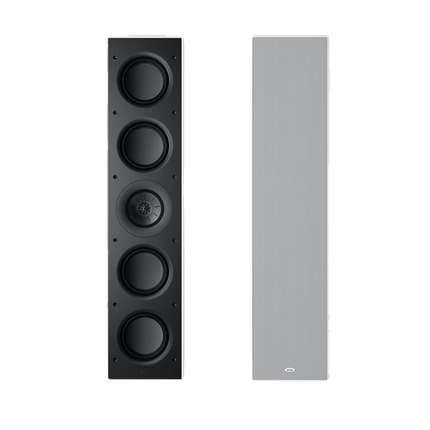

Model: Ci5120QLM-THX
Series: Q Series
Nominal impedance: 4Ω
Sensitivity (2.83V/1m): 89dB
Frequency response (±6dB) open-backed: 45Hz - 20kHz
Frequency range (-10dB): 38Hz - 20kHz
Nominal coverage (degrees): 150°
Max SPL (dB): 105dB
Crossover frequency: 440Hz, 2.75kHz
Drive units:
LF 4 x 120mm (4.75 in.)
MF 100mm (4 in.) Uni-Q
HF 19mm (0.75 in.) vented aluminium dome with
Metamaterial Absorption Technology
Recommended amplifier power: 25 - 250 W
Recommended high-pass filter (Hz): 35Hz-100Hz

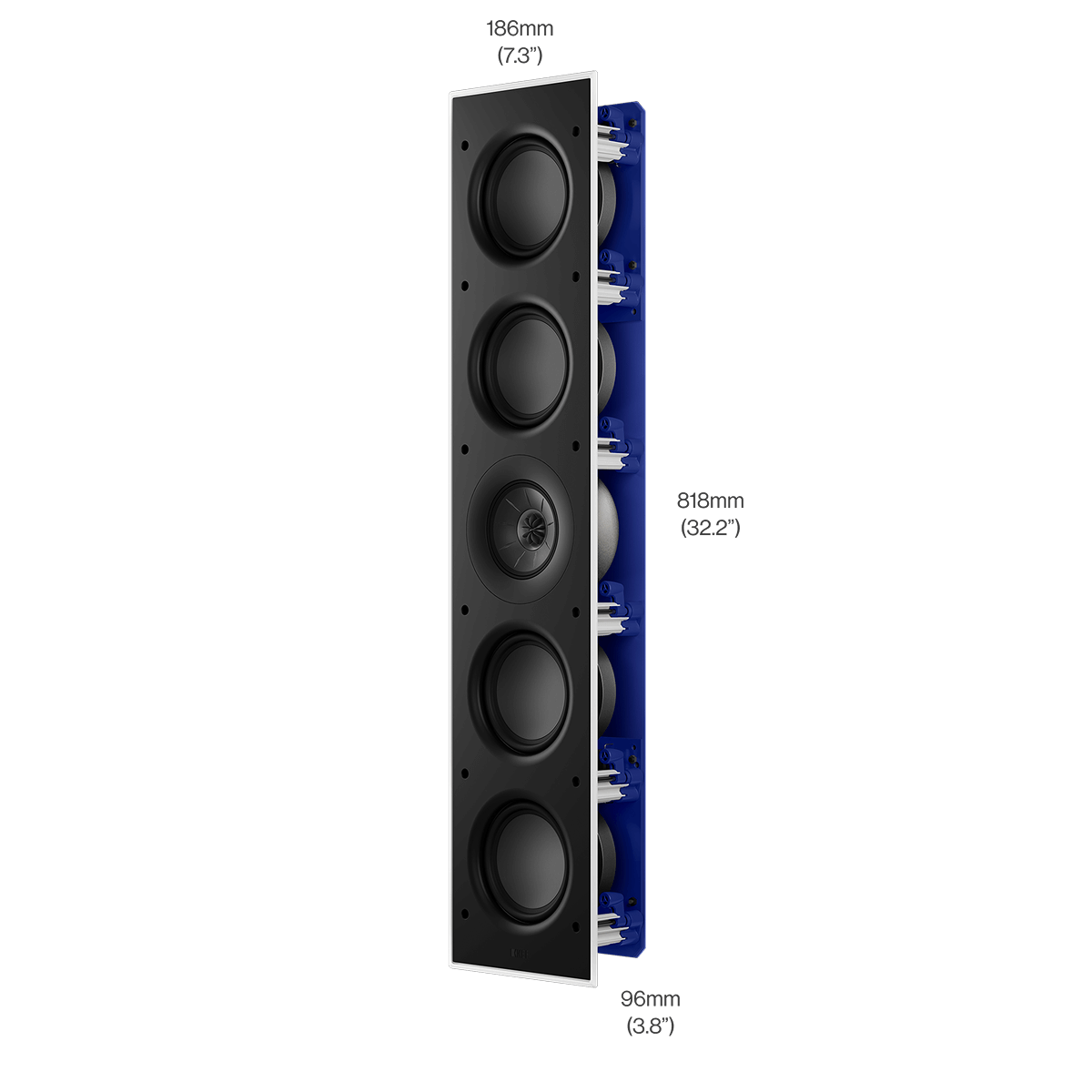

Product external dimensions (H x W x D): 818 x 186 x 96mm
(32.2 x 7.3 x 3.8 in.)
Cut-out dimensions (H x W): 795 x 163mm
(31.3x 6.4 in.)
Net Weight: 9.7KG (21.4 lbs.)
Gross Weight:
Single box 12.8KG (28.2 lbs.)
Master box 27KG (59.5 lbs.)
Mounting depth from surface: 90mm (3.6")
Ideal Rear Volume(L): 70
Minimum Rear Volume(L): 35
THX-Certified: THX Certified Select
Safety and Regulatory Compliance: IP64
Ceiling Thickness (Maximum): 36mm (1.42 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.
