Audio
Frequency Response: 50 Hz - 20K Hz.
Peak Power: 100 W total.
1 x 4” long-throw woofer, 50W
2 x full-range tweeters, 2x25W
Crossover Frequency: 2.4 kHz.
Hi-Res: Up to 24-bit/192 kHz, gapless playback.
Room Correction: AI RoomFit™ automatic/assisted tuning.
EQ: On-device Quick EQ; advanced EQ in app (presets + custom); separate EQ settings for Wi-Fi/ Ethernet, Bluetooth, and Aux.
I/O, Connectivity, & Control
Wireless Input:
Wi-Fi 6 (802.11 b/g/n/ax, tri-band: 2.4/5/6 GHz)
Bluetooth 5.3 (Receiver & Transmitter, supports SBC, AAC, LC3)
Wired Input :
100 Mbps Ethernet
3.5mm Aux input
Control:
1.8″ Round Touch Display (Hi‑Res)
Touch Buttons: Play/Pause, Volume Up/Down, Next/Previous Track

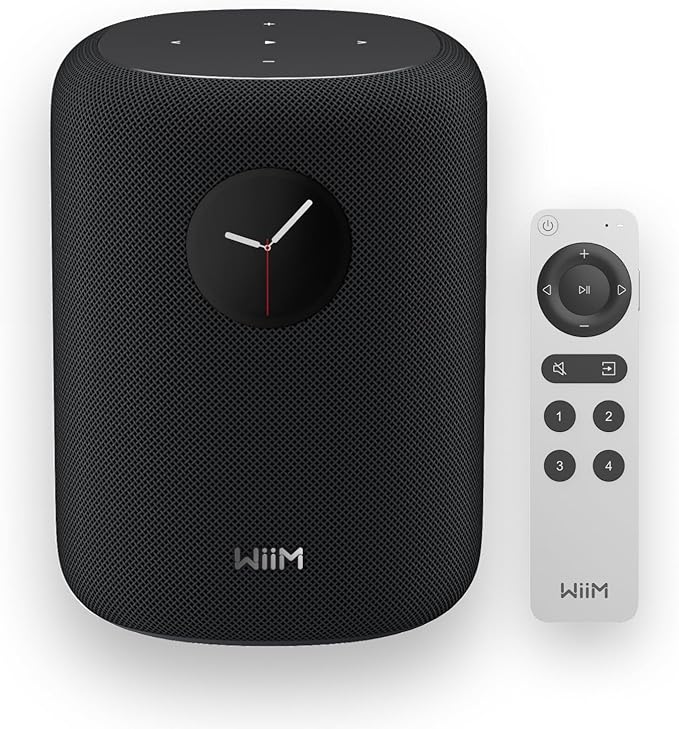

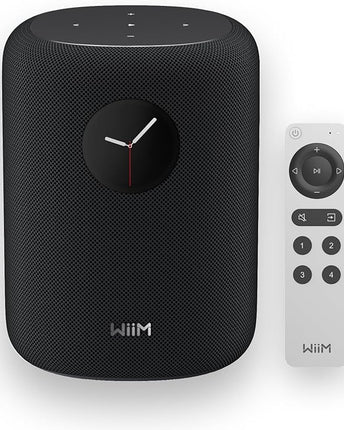

WiiM Voice Remote 2 Lite (included)— one‑tap playback/volume/skip, push‑to‑talk voice, preset buttons
Voice: Works with Alexa or Google Assistant via compatible devices
App: WiiM Home App for iOS / Android / Windows / MAC / Apple TV / Google TV
Streaming & Smart Features
Supported Platforms: WiiM Home App, Google Cast, Spotify Connect, TIDAL Connect, DLNA, LMS, Roon Ready
Multi-Room Audio: WiiM, Google Cast, and Alexa multi-room systems
Stereo Pairing: Enables left/right speaker setup for expanded soundstage
Home Theater Integration: Functions as the surround or center channel speaker in a Dolby 5.1 setup
Smart Preset: Streamlines the listening experience by offering quick access to frequently used content and settings.
Alarm Clock: Set the alarm time, occurrence, and choose from various music sources.

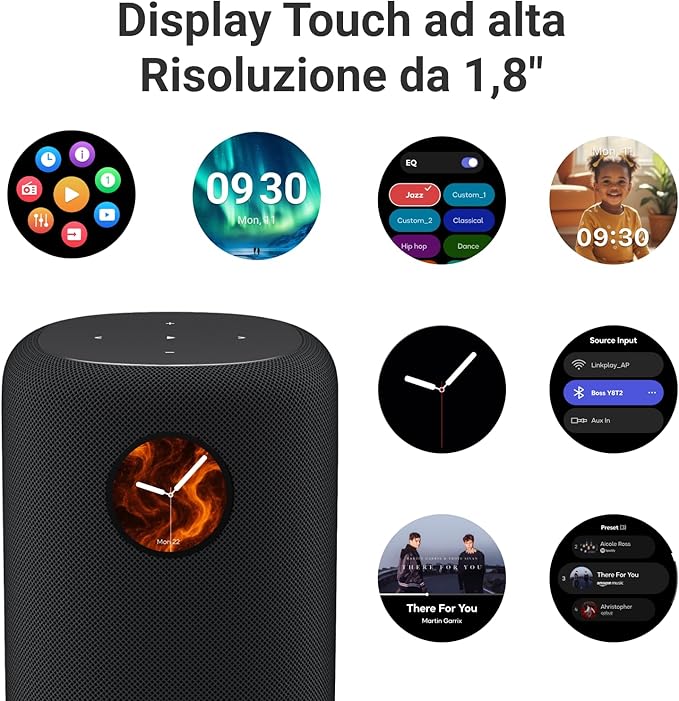

Touch Display
Screen: 1.8” glass-covered, high-resolution touch display
Functions:
Playback control, album art, EQ adjustments, audio input selection, device settings
Display queue, presets, VU meters, time/date in standby mode
Supports customizable wallpapers
Guides setup (OOBE) and OTA firmware updates
Power & Build
AC-powered: 100-240V AC universal power supply; energy‑efficient standby; firmware over‑the‑air (OTA) updates.
Finishes: Minimalist modern, Black/White, Fabric/Glass/PC.
Dimensions: 5.8” x 5.8” x 7.6” (146 x 146 x 194 mm).
Weight: 5.5 lbs (2.5 kg).
