Power & Amplification
Output Power : 100W per channel at 8Ω (stereo)
Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
Total Harmonic Distortion (THD+N) : ≤0.0005%
Signal-to-Noise Ratio (SNR) : ≥120dB
Frequency Response: 20Hz – 20kHz ± 0.5dB
Impedence Range: 3~8 ohms
Audio Processing
Premium DAC : ESS 9039Q2M high-performance DAC
Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
Dynamic Range : ≥120dB for high-resolution sound
Pure Analog Input : No ADC conversion, maintaining signal integrity

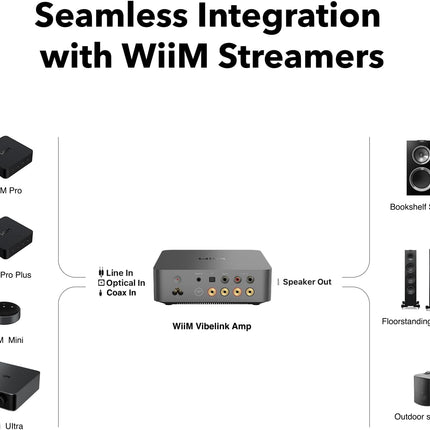

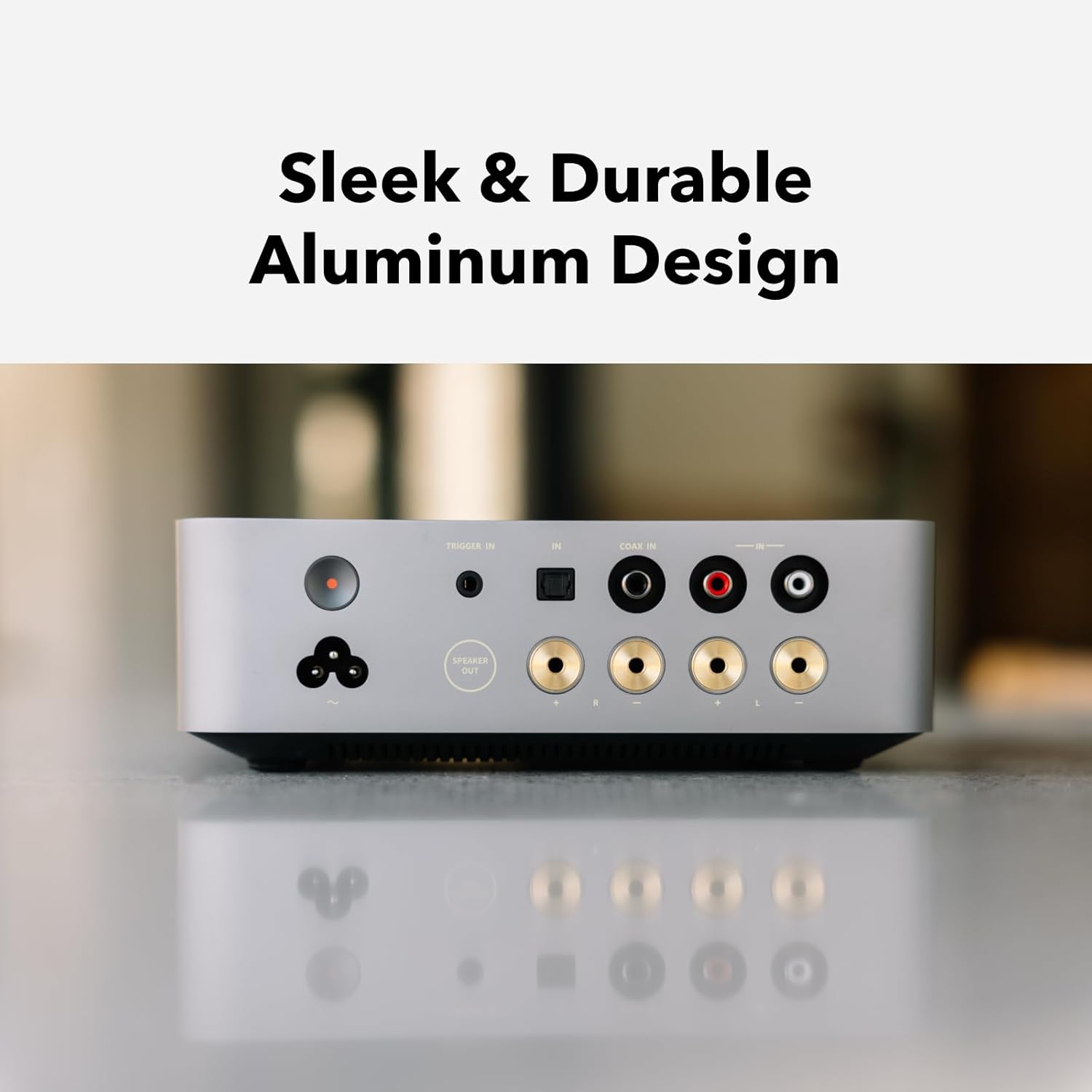

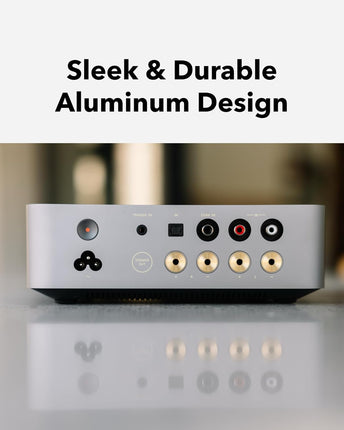

Input & Output Options
Analog Inputs: 1x RCA Stereo (Line-In, pure analog signal path)
Digital Inputs:
1x Optical (TOSLINK) – Up to 192kHz/24-bit
1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
Speaker Outputs: Gold-plated binding posts (supports banana plugs or bare wire connections)
Trigger & Power Management:
12V Trigger In: Auto power-on with compatible devices
Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
Supported Audio Formats
PCM up to 192kHz/24-bit (through digital sources)

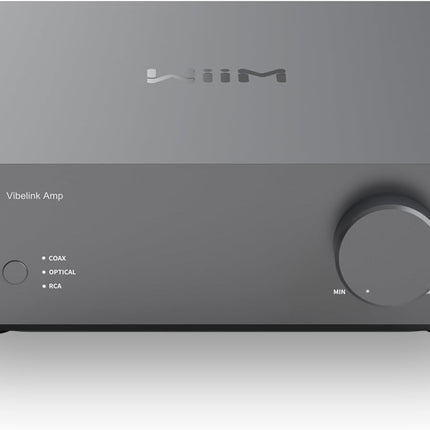

Control Interfaces
Volume Knob: Adjusts volume
LED Indicator: Three 4-color RGBW LED indicates source input and device status
Build & Design
Chassis: Premium unibody aluminum for durability & heat dissipation
Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
Cooling System: Passive, silent operation
