Output
Continuous Power, both channels driven @ 1% THD, 1kHz:
160W per channel into 8 Ohms;
240W per channel into 4 ohms
Continuous Power, both channels driven @ 0.09% THD, 20Hz to 20 kHz:
140W per channel into 8 Ohms;
210W per channel into 4 ohms
Peak Power, both channels driven @ 1% THD, 1kHz:
190W per channel into 8 Ohms;
320W per channel into 4 ohms
36 Volts RMS, 20Hz to 20 kHz; onset of clipping
101 Volts peak to peak
Current 45 Amps peak to peak
Damping factor 47 (8 Ohms)
Output devices 2 pairs per channel
Line input
THD+N < 0.009 % typical, 20Hz to 20 kHz
Signal / noise ratio > 105dB ‘A’-weighted
Input impedance 40 k Ohms
Frequency response +0, –0.1dB, 10Hz to 20 kHz

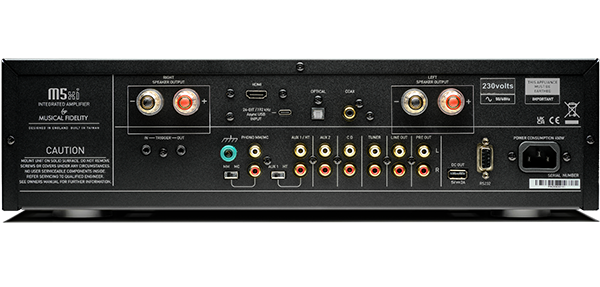

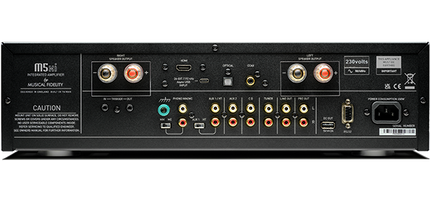

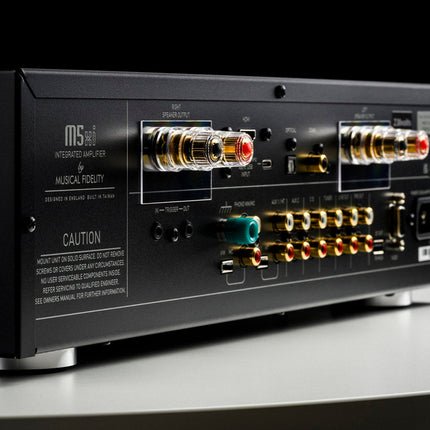

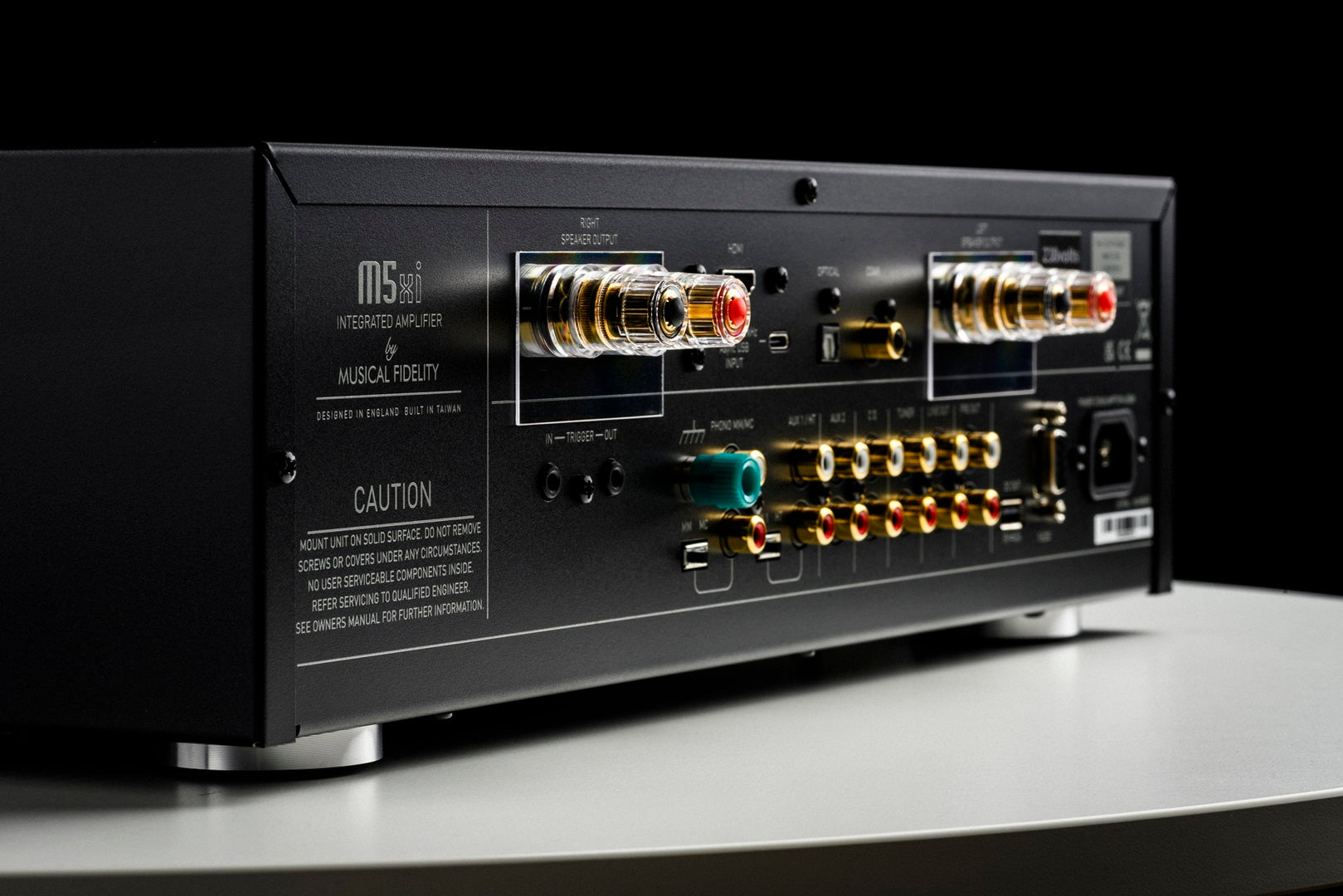

Connections
4x Line level RCA inputs
1x HDMI input
1x Coaxial input
1x Optical input
1x Phono MM/MC input
1x USB type ‘C’ connector - up to 24-bit/192kHz
Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
1 pair line level RCA connectors, preamp outputs
Speaker out: 2 pairs 4mm banana plug
1x USB A 5V/2A power output
1x RS232 D-sub connector
Trigger In & Out
Phono Input
Sensitivity (nominal): 3mV MM / 0.4mV MC (for 300mV nominal)
Gain MM/MC: 40dB / 60dB
Signal / noise ratio: >87dB ‘A’-weighted
Input capacitance: 220pF
Input impedance: 50k Ohms MM / 1k Ohm MC
Frequency response: RIAA/IEC ±0.4dB, 20Hz - 20 kHz
Power requirement
Mains 115/230VAC 50/60Hz (factory pre-set)
100VAC 50/60Hz (alternative)
Consumption 320 Watts maximum
General
Dimensions - WxHxD (mm): 440 x 125 x 405
Weight (unpacked / packed): 15 kg/ 18.5 kg
