Amplifier
Power Amplifier Rated output & THD (8 ohm): 100 W+100 W (8 Ω, THD 0.05%)
Power Amplifier Rated output & THD (4ohm): 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
Frequency Response: 20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance: 4 – 16 Ω/ohms
Audio Inputs / Outputs

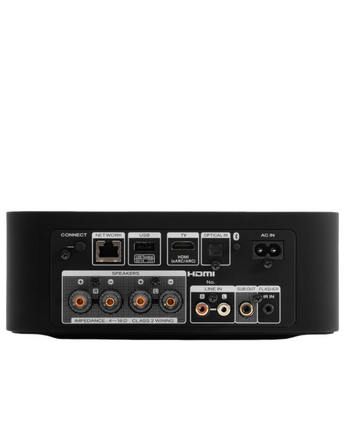

Loudspeaker Binding Posts: 4-way binding posts
Digital Inputs: HDMI (eARC), TOSLINK
Analog Inputs: RCA L/R
Subwoofer Out: RCA Mono
Inputs Audio Options
Channel Assignments: Stereo (Default), Dual Mono
Volume Limit: 80-100%
Balance: -15dB to +15dB
Adjustable High Pass / Low Pass Filters: 40-250 Hz / 40-120 Hz
EQ: Bass, Treble -5dB to +5dB
Sound Modes: Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound Grouping: Yes
Audio Format Support
Decoding: Dolby Digital +, Dolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCM: Yes / Yes
Stereo File Formats (HEOS network share or USB): WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
Bluetooth Receive: BT 4.2.X
Bluetooth Trasmit: No
AirPlay: AirPlay 2
Spotify: Spotify Connect
Music Services and Sources
Music Services Supported (HEOS®, subject to change and local availability): Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile device: Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage): Network share
USB Storage Device Playback: Yes (FAT32, NTFS formatted drives)
Networking & Control
Wired Connectivity: Ethernet
Wireless Connectivity: Dual band, 802.11 a/b/g/n/ac
IR Input: 3.5mm
IR Learning: Yes
Control System Compatibility via TCP/IP: Creston, Control4, AMX
HEOS® App: iOS, Android, Kindle Fire
General
Product Color: Black
User Interface: Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
Dimensions (W x D x H) Inches: 9.41 x 3.31 x 8.54
Dimensions (W x D x H) mm: 239 x 84 x 217
Weight (lbs): 4.84
Weight (kg): 2.2
