Newest Firmware Version: 0051-933309b3
Bluetooth Standard: 5.0, 10m
Bluetooth Codec: AAC, SBC
Power Output:

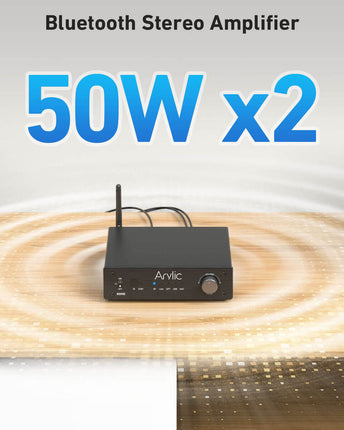

24V 4Ω 50W x 2
24V 8Ω 30W x 2
Speaker Impedance: 4 - 8Ω
Frequency Response: 20Hz to 20Khz
THD + N: <0.1% @ 1W 1kHz
SNR: >93dB @ Max Power

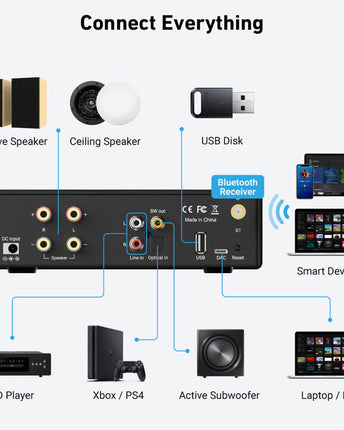

Line in: Analog RCA, Max 2V RMS input
Optical in:
Up to 192kHz/24bit
PCM Only
USB Host:
USB disk drive playback, support resume playback
Storage format: Fat16, Fat32, exFAT, up to 128GB
Support codec: mp3, mp4, wma, mov, m4a, aac, flac(96kHz/24bit), ape
USB Type-C: USB DAC for PC connection, sample rate: 48kHz
Subwoofer out: Max 3V RMS output, cutting frequency: 250Hz
Speaker out: 50W per channel @ 4Ω
Power Input: 24V/4.16A
Size: 185 x 155 x 50mm
Weight: 750g
