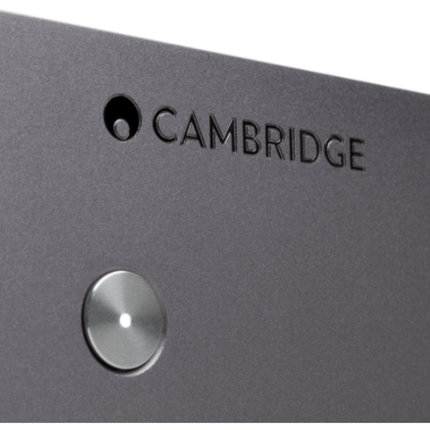

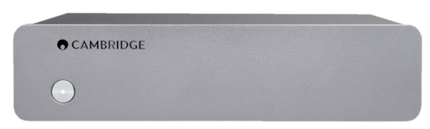

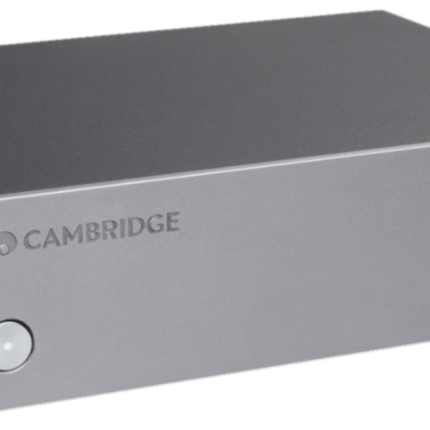

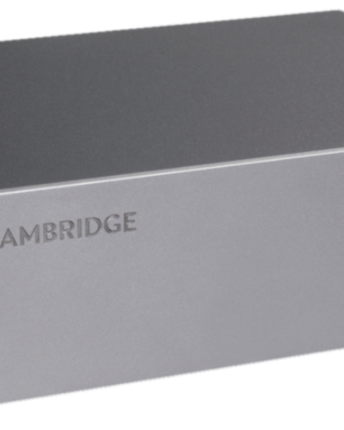

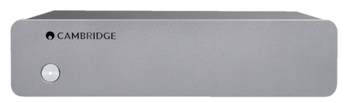

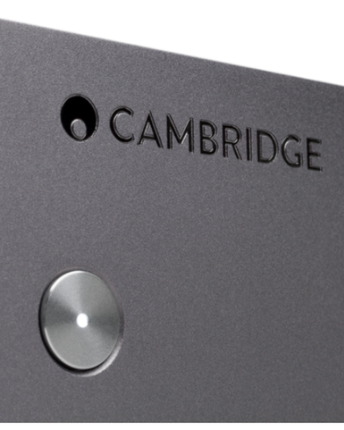

Cambridge Audio Alva Solo Phono предусилвател

Cambridge Audio
Сподели

Форма

Безплатно взимане от шоурума

Избран вариант: Лунно сиво

Код на продукта: C10934

В наличност

349.00 лв

Доставка днес? Поръчай в: Nov 24, 2024 16:00:00 +0200

30 дни срок за връщане

Гаранция 24 месеца

Безплатна доставка за поръчки над 200 лева в България

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

Описание

MM фоно предусилвател
Усилване при 1KHZ MM: 39dB
Входен импеданс MM: 47k Ohms
MM съотношение S/N: >90dB

Допълнителна информация

Ръководство: свали файла

Vinyl as it's Supposed to Sound

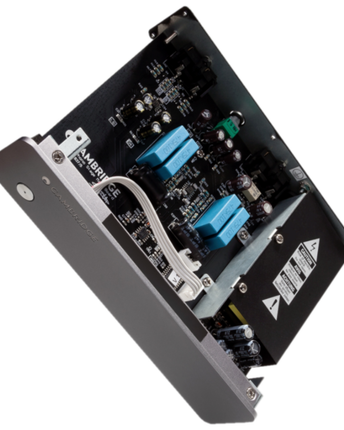

Whether you’re dusting off your record collection or embracing analogue through the vinyl revival, there’s a unique experience to be had from the moment you drop the needle on your favourite album. To preserve the unique warmth of the vinyl sound, the Solo phono preamplifier has been carefully designed with a state-of-the-art switch mode power supply and a new surface mounted circuit board layout to reduce unwanted noise.

Why Choose a Dedicated Phono Stage?

Due to the low-level signals created by a turntable, not all hi-fi amplifiers will let you connect directly to a record player. The phono preamplifier boosts this signal to something a power amplifier can work with. The challenge at this stage though is that noise can easily be added.

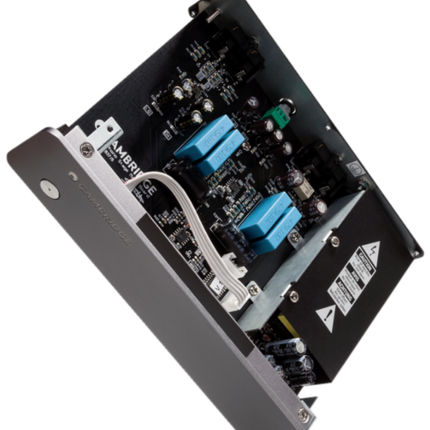

This is why we’ve designed the Solo around exceptional components that deliver the warm and detailed sound that’s synonymous with vinyl, all without distorting the signal from your moving magnet cartridge. The switch mode power supply improves performance by switching outside of audible frequency to drastically reduce hum and new circuit board layout uses surface-mount components to reduce noise.

Attention to Detail

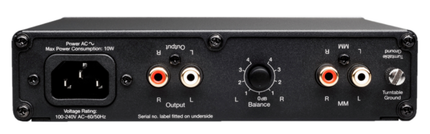

If some records in your collection are a little worse for wear, the subsonic filter will help to eliminate low frequency rumbles that can be caused by imperfections within your vinyl. Combine this with the balance control for handling potential cartridge imbalances in your record player (that can cause a difference between the left and right channels) and the result is a detailed experience with accurate soundstage.

Eco Friendly

The Solo phono preamplifier is green at heart with less than half a watt standby power consumption and auto power down feature if the unit isn’t used after a 20 minute period. This in turn gives the unit the same worldwide voltage for compatibility wherever you are in the world.

Technical Specifications

Maximum Power Consumption: 10W

Standby Consumption: <0.5W

Mains Inlet Voltage: 100-240V AC

Gain @ 1kHz: 39dB

Nominal Output: 300mV

Sensitivity for Nominal Output: 3.35mV

Equivalent Input Noise (A-Weighted): ~0.09uV

RIAA Curve Accuracy: +/- 0.65dB 30Hz - 20kHz

Signal to Noise Ratio Grounded Inputs ref. 1V Output (20Hz - 20kHz BW): >90dB

THD+N 1kHz (20Hz - 20kHz BW): <0.0025%

Input Impedance: 47kOhm

Input Capacitance: 100pF

Overload Margin: >30dB

Crosstalk @ 20kHz: >85dB

Subsonic Filter Characteristics: -3dB @ 15Hz 12dB/octave

Dimensions (H x W x D): 48 x 176 x 132 mm (1.9 x 6.9 x 5.2 ")

Weight: 0.68kg (1.5lbs)
