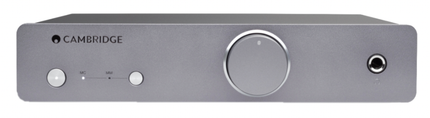

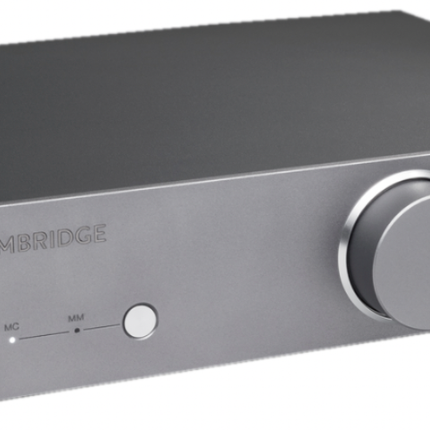

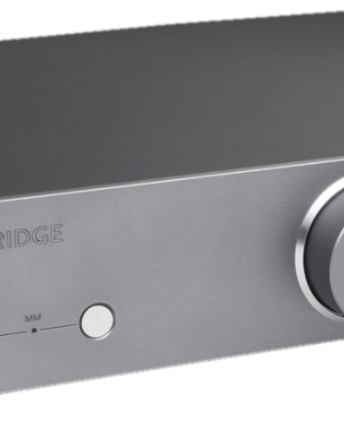

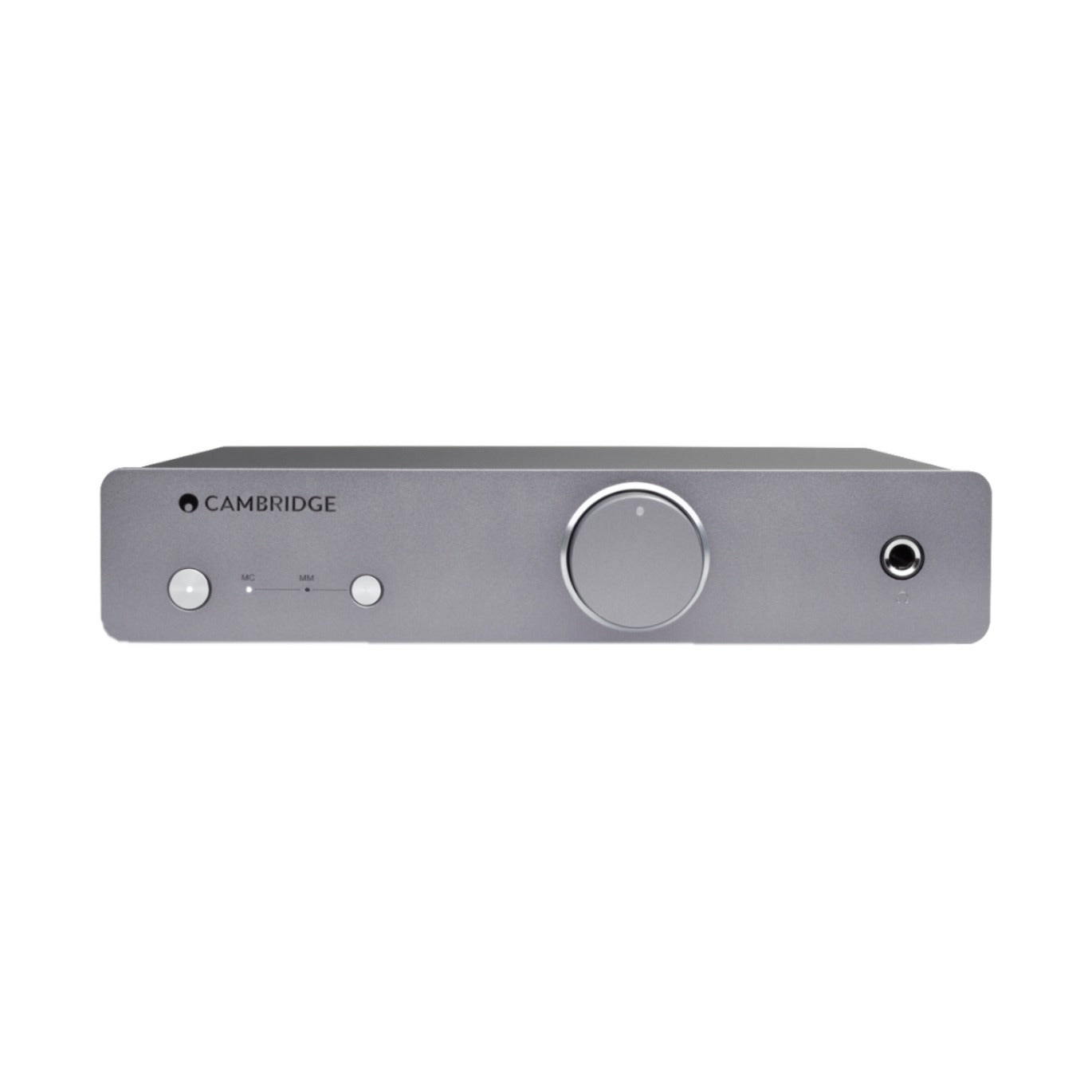

Cambridge Audio Alva Duo фоно предусилвател

Форма
Безплатно взимане от шоурума

Избран вариант: Лунно сиво

Код на продукта: C10935

В наличност

599.00 лв

  • Доставка днес? Поръчай в: Nov 27, 2024 16:00:00 +0200
    • 30 дни срок за връщане
    • Гаранция 24 месеца
    • Безплатна доставка за поръчки над 200 лева в България
    • За плащане на вноски изберете NETOPIA като процесор за плащане.

    Описание

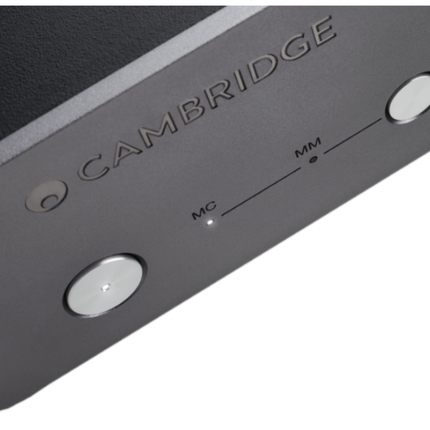

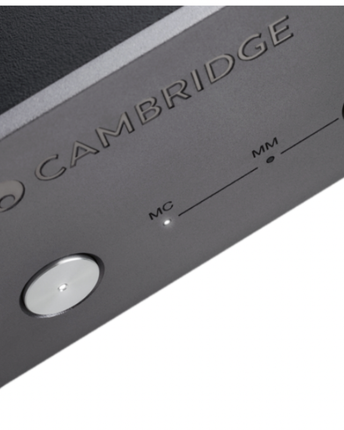

    • MM и MC фоно предусилвател
    • Усилване при 1KHZ MM: 39dB | MC: 60dB
    • MM входен импеданс: 47k Ohm | MC: 100 ома
    • MM съотношение S/N: >90dB | MC: >70dB

    Допълнителна информация

    Ръководство: свали файла

    Vinyl as it's Supposed to Sound

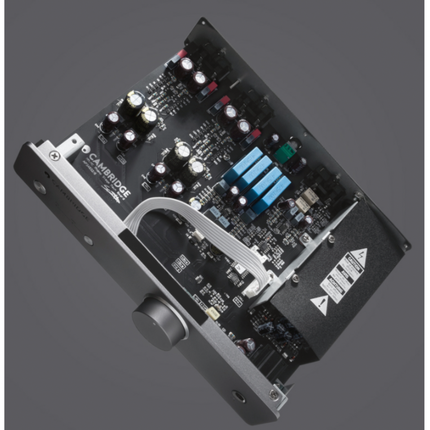

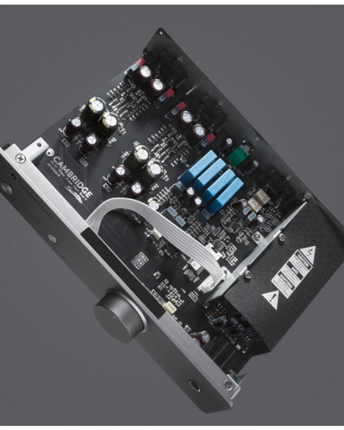

    Whether you’re dusting off your record collection or embracing analogue through the vinyl revival, there’s a unique experience to be had from the moment you drop the needle on your favourite album. To preserve the unique warmth of the vinyl sound, the Duo phono preamplifier has been carefully designed with a state-of-the-art switch mode power supply and a new surface mounted circuit board layout to reduce unwanted noise.



    Why Choose a Dedicated Phono Preamplifier?

    Due to the low-level signals created by a turntable, not all hi-fi amplifiers will let you connect directly to a record player. The phono preamplifier boosts this signal to something a power amplifier can work with. The challenge at this stage though is that noise can easily be added.

    This is why we’ve designed the Duo around exceptional components that deliver the warm and detailed sound that’s synonymous with vinyl, all without distorting the signal from your moving magnet cartridge turntable. The switch mode power supply improves performance by switching outside of audible frequency to drastically reduce hum and new circuit board layout uses surface-mount components to reduce noise.


    Vinyl. Just for You

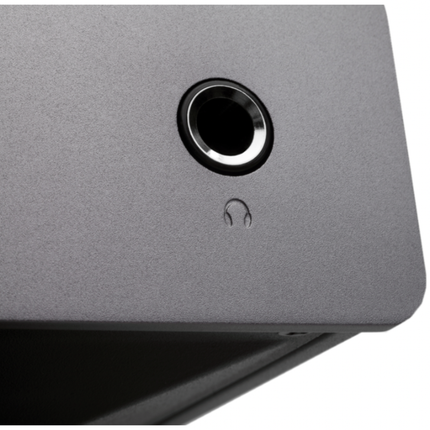

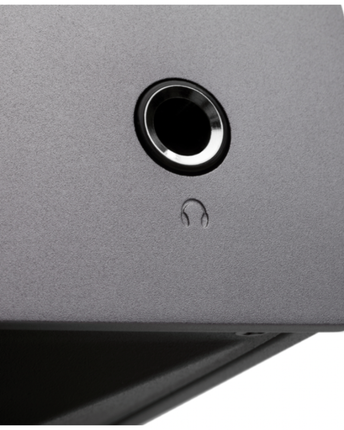

    Enjoy the warmth of vinyl privately thanks to Duo’s integrated headphone output. Uniquely, we integrated a 6.35mm headphone jack directly into the phono stage, so you can still enjoy your records when there’s no option to play out loud.

    The integrated headphone output also means no need to turn on your amplifier just to power your headphones, resulting in a more eco-friendly listening experience.


    Attention to Detail

    If some records in your collection are a little worse for wear, the subsonic filter will help to eliminate low frequency rumbles that can be caused by imperfections within your vinyl. Combine this with the balance control for handling potential cartridge imbalances in your record player (that can cause a difference between the left and right channels) and the result is a detailed experience with accurate soundstage.


    Eco Friendly

    The Duo phono preamplifier is green at heart with less than half a watt standby power consumption and auto power down feature if the unit isn’t used after a 20 minute period. This in turn gives the unit the same worldwide voltage for compatibility wherever you are in the world.

    Technical Specifications

    Maximum Power Consumption: 10W

    Standby Consumption: <0.5W

    Mains Inlet Voltage: 100-240V AC

    Gain @ 1kHz:
    39dB (Moving magnet)
    60dB (Moving coil)

    Nominal Output: 300mV

    Sensitivity for Nominal Output:
    3.35mV (Moving magnet)
    305uV (Moving coil)

    Equivalent Input Noise (A-Weighted):
    ~0.09uV (Moving magnet)
    ~0.08uV (Moving coil)

    RIAA Curve Accuracy: +/- 0.3dB 30Hz - 20kHz

    Signal to Noise Ratio Grounded Inputs ref. 1V Output (20Hz - 20kHz BW):
    >90dB (Moving magnet)
    >70dB (Moving coil)

    THD+N 1kHz (20Hz - 20kHz BW):
    <0.0025% (Moving magnet)
    <0.020% (Moving coil)

    Input Impedance:
    47k Ohm (Moving magnet)
    100 Ohm (Moving coil)

    Input Capacitance: 100pF

    Overload Margin: >30dB

    Crosstalk @ 20kHz:
    >85dB (Moving magnet)
    >75dB (Moving coil)

    Subsonic Filter Characteristics: -3dB @ 15Hz 12dB/octave

    Dimensions (H x W x D): 48 x 215 x 159 mm (1.9 x 8.5 x 6.2 ")

    Weight: 0.95kg (2.1lbs)
