Tube Box S2 Silver

Форма
Безплатно взимане от шоурума

Избран вариант: Сребро

Код на продукта: 9120071658595

Пита, когато се върне

739.00 лв / Парче

    • 30 дни срок за връщане
    • Гаранция 24 месеца
    • Безплатна доставка за поръчки над 200 лева в България
    • Pentru plata în rate alegeți NETOPIA ca procesator de plăți.
    Кодове на продукти: 9120071658595 9120071658588

    Описание

    • Доса предусилвател с лампи
    • 2 x ECC83 (12AX 7A)
    • Съвместим MM / MC
    • Импеданс/капацитет: 47pF, 147pF, 267pF, 367pF, 487pF и 587pF* / 47 kohm
    • Усилване 40 dB, 43 dB / 50 dB, 60 dB и 63 dB
    • Криви на изравняване RIAA макс. 0,4 dB/20 Hz - 20 kHz THD

    Допълнителна информация

    Линк към производителя: кликни тук

    Ръководство: свали файла
    Спецификация на продукта: свали файла

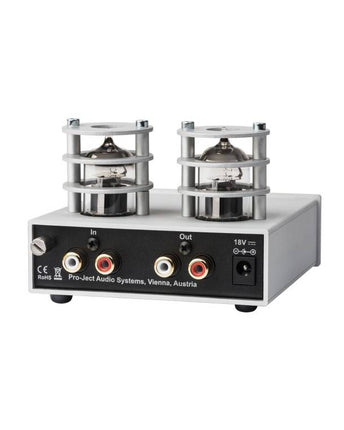

    Tube Box S2

    Tube phono-preamplifier

    Innovative miniature sized phono preamplifier with tube output and high end sound!

    Tube Box S2 is our very first product to feature a fully discreet circuit design without using any operational amplifiers (OpAmps). It also is the first product to come with replaceable tubes for tube rolling and sound-shaping. This gives the customers many options to pick from and alter the sound signature to their preferences. Tube Box S2 will give a full and relaxed laid back sound with lush mids, just like you would expect it from a much bigger high end tube phono pre-amplifier. It offers support for both MM and MC cartridges and comes with many gain settings to be switched on the front panel. Five variable input impedance settings are available to adjust to any MM cartridge, the 47k ohm input impedance setting is fixed and suited for high output MC cartridges. The aluminium/metal casing is adapted to our DS2 line in looks and protects against vibrations and electromagnetic interferences for superior sound.

    Technical Specifications

    Tube assembly: 2x ECC83 (12AX7)

    Input impedance: 10/100/470/1k/2k ohms, fix 47k ohms

    Capacitance: 50 / 150 / 270 / 370 / 490 / 590 pF

    Gain MM / MC: 40 / 43 / 50 / 60 / 63 dB

    Signal-to-noise ratio: 77dBA

    THD+N: < 0,0025%

    RIAA curve accuracy: +/- 0,4dB/20Hz - 20kHz

    Subsonic filter: 20Hz @ 12dB/octave

    Input / Output: 1x RCA / 1x RCA

    Dimensions WxHxD: 103 x 73 x 119 mm
