AUDIO
Signal-to-Noise Ratio: -102dBA
Distortion: THD+N, 0.005%
Amplification: DirectDigital™
Rated Power Output: Dynamic Power Management – 120W x 2 or 60W x 4 (8 Ohms)
IHF Dynamic Power: 300W (4ohm)/200w (8ohm)

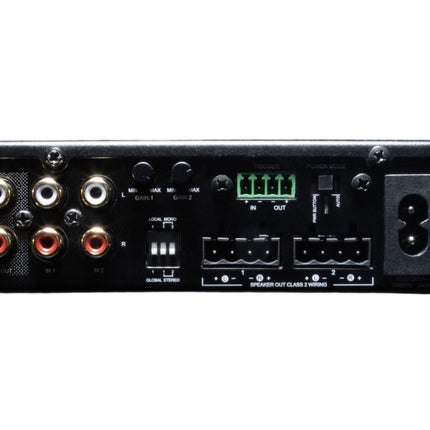

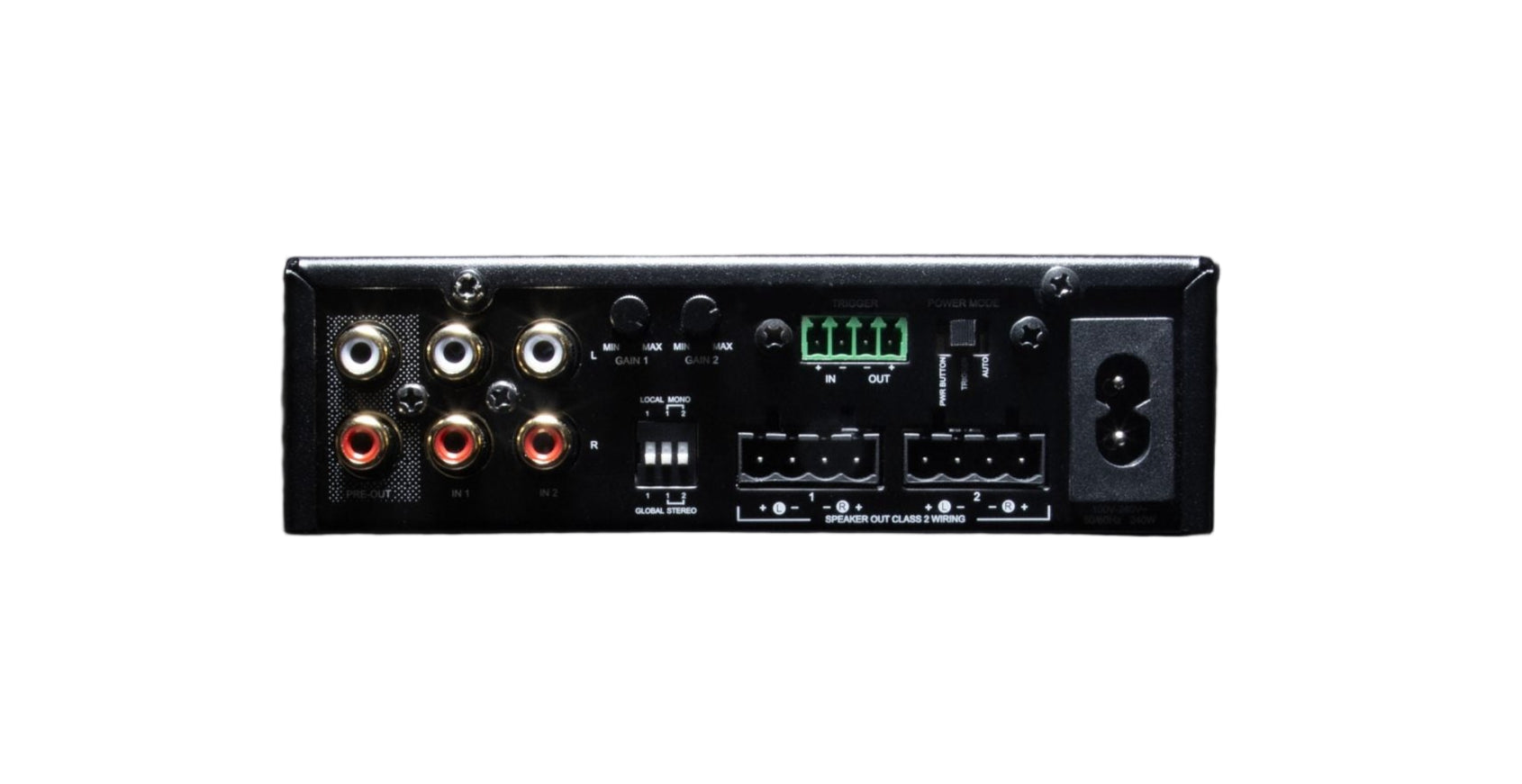

CONNECTIONS
Power Supply: Universal 2-pin AC cord input (100-240AC)
Inputs: 2 x Stereo RCA
Outputs: 1 x Stereo RCA Pre-Out, 2 x Speaker outputs
Speaker Terminals: 2x 4-PIN Snap On PHX 5.08mm Connector (Supports up to 12 AWG)
12v Trigger Input: x1 (Unit Power On)
12v Trigger Output: x1

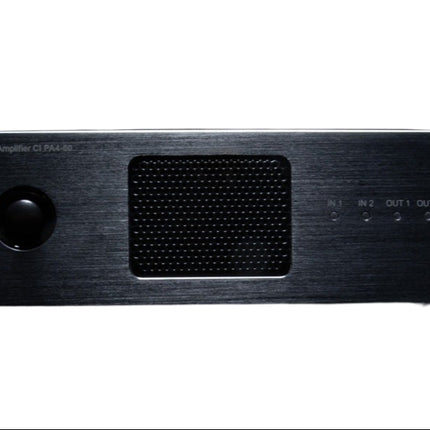

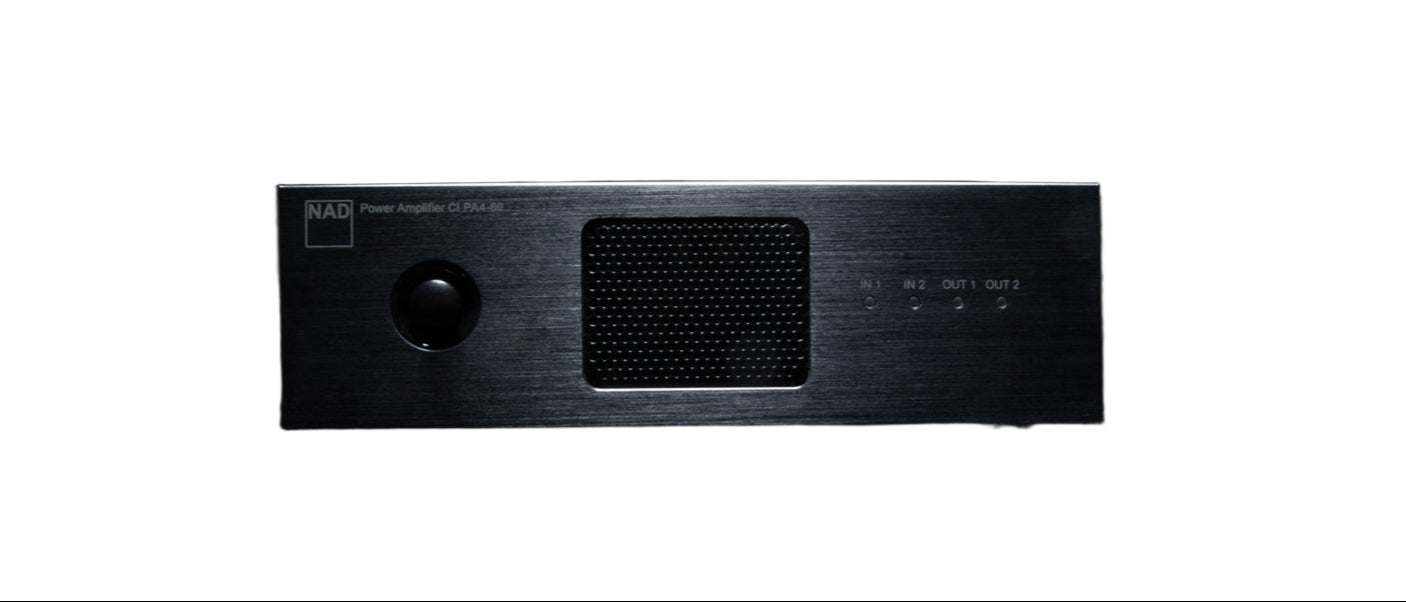

USER INTERFACE & CONTROL
Input Gain Control: x2 Input Gain Potentiometers (-6 to +6 dB range)
Power Mode Control: 3-way switch (Power Button, 12v Trigger, Signal Sense options)
Input Control: Input 1 Local/Global, x2 Input Stereo/Mono selection
Status Indicator: Power Status LED
Source Status Indicator: x2, Connected Input Active
Output Status Indicator: x2, Output pair 1, Output Pair 2 (Output active, Temperature/Protection warning)
GENERAL
Max Power Consumption: TBD
Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
Operating Environment: 0°C to 40°C
Dimensions (Product):
(WxHxD metric)146.5 x 44 x 384 mm
(WxHxD imperial) 5.77 x 1.73 x 15.11 inches
Weight (excluding rack ears & connectors): 2.35 kg/5.18 lbs
Dimensions (Shipping, Single Unit):
(LxWxH metric) 520 x 228 x 140 mm
(LxWxH imperial) 20.5 x 9 x 5.5 inches
Weight: 3.35 kg/7.4 lbs
Dimensions (Shipping, Masterpack):
Units per carton: 6
(LxWxH metric) 532 x 470 x 444 mm
(LxWxH imperial) 20.5 x 9 x 5.5 inches
Weight: 20.3kg
